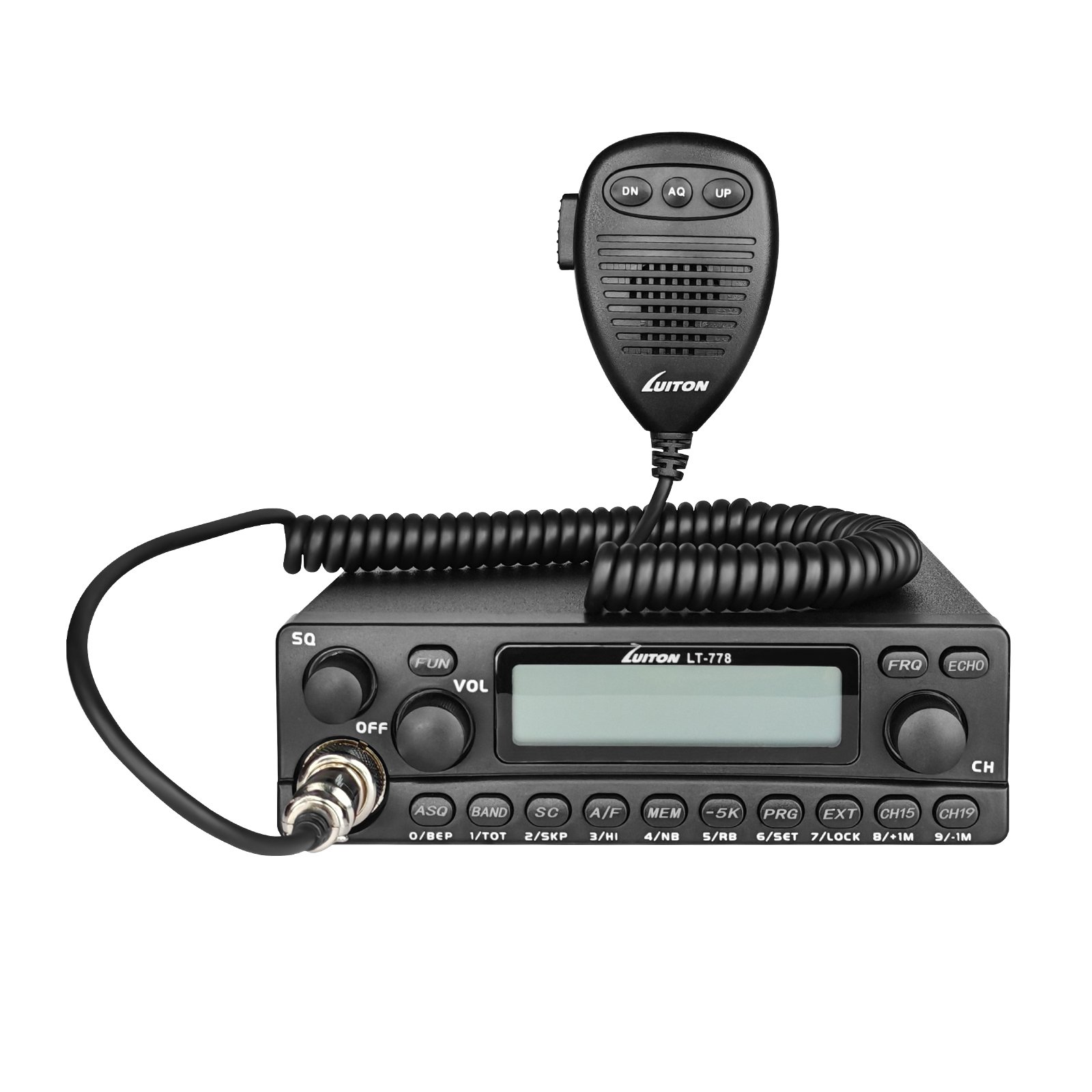

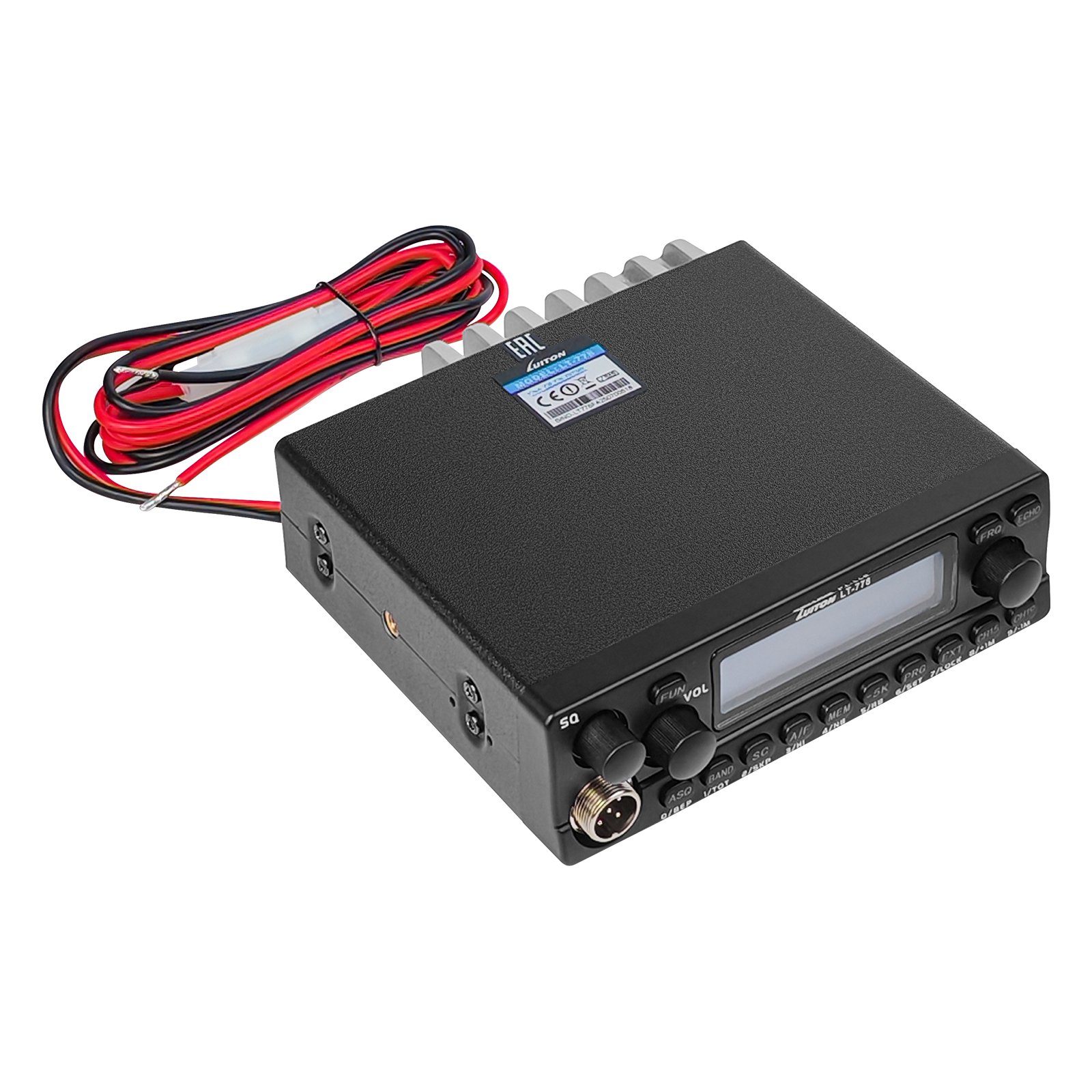

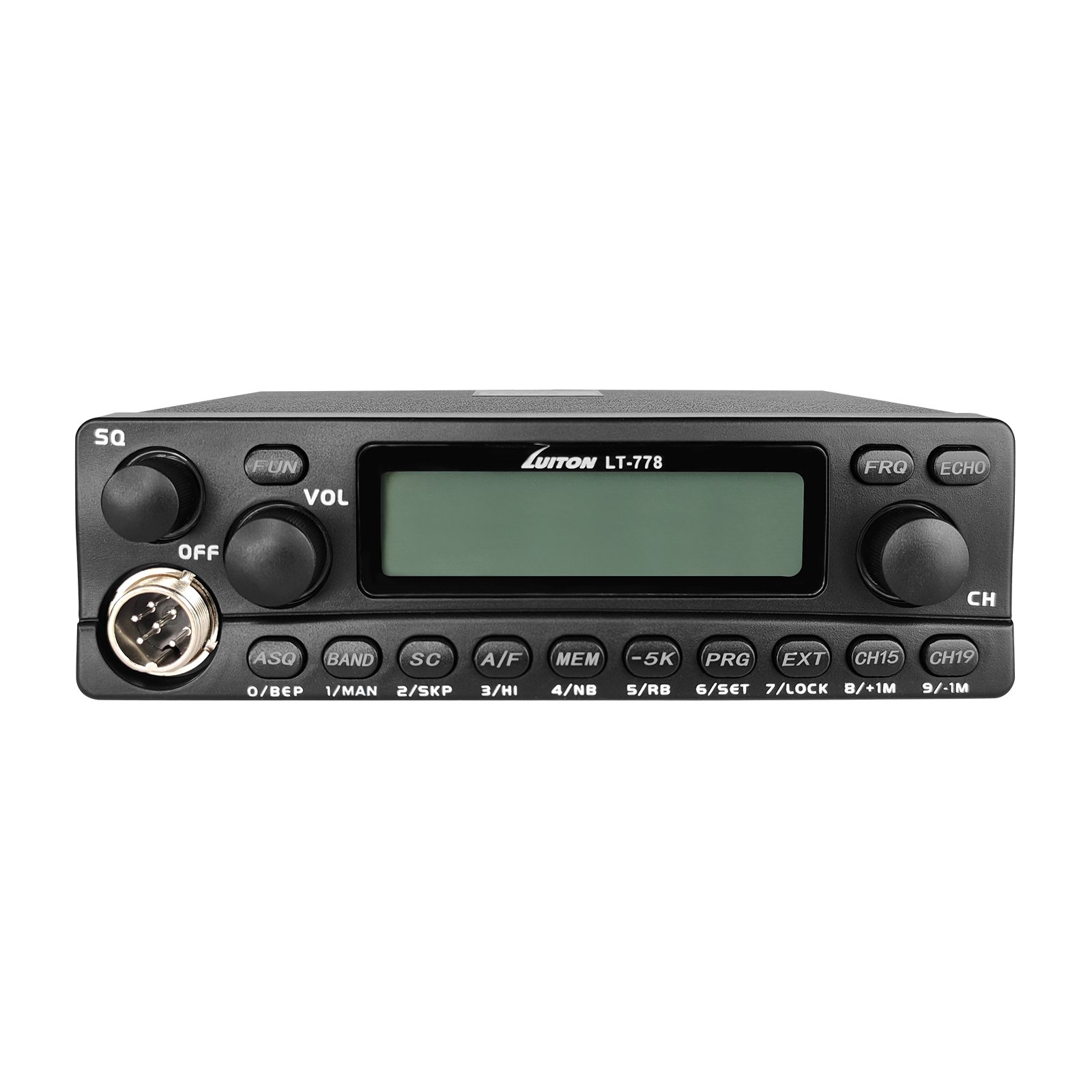

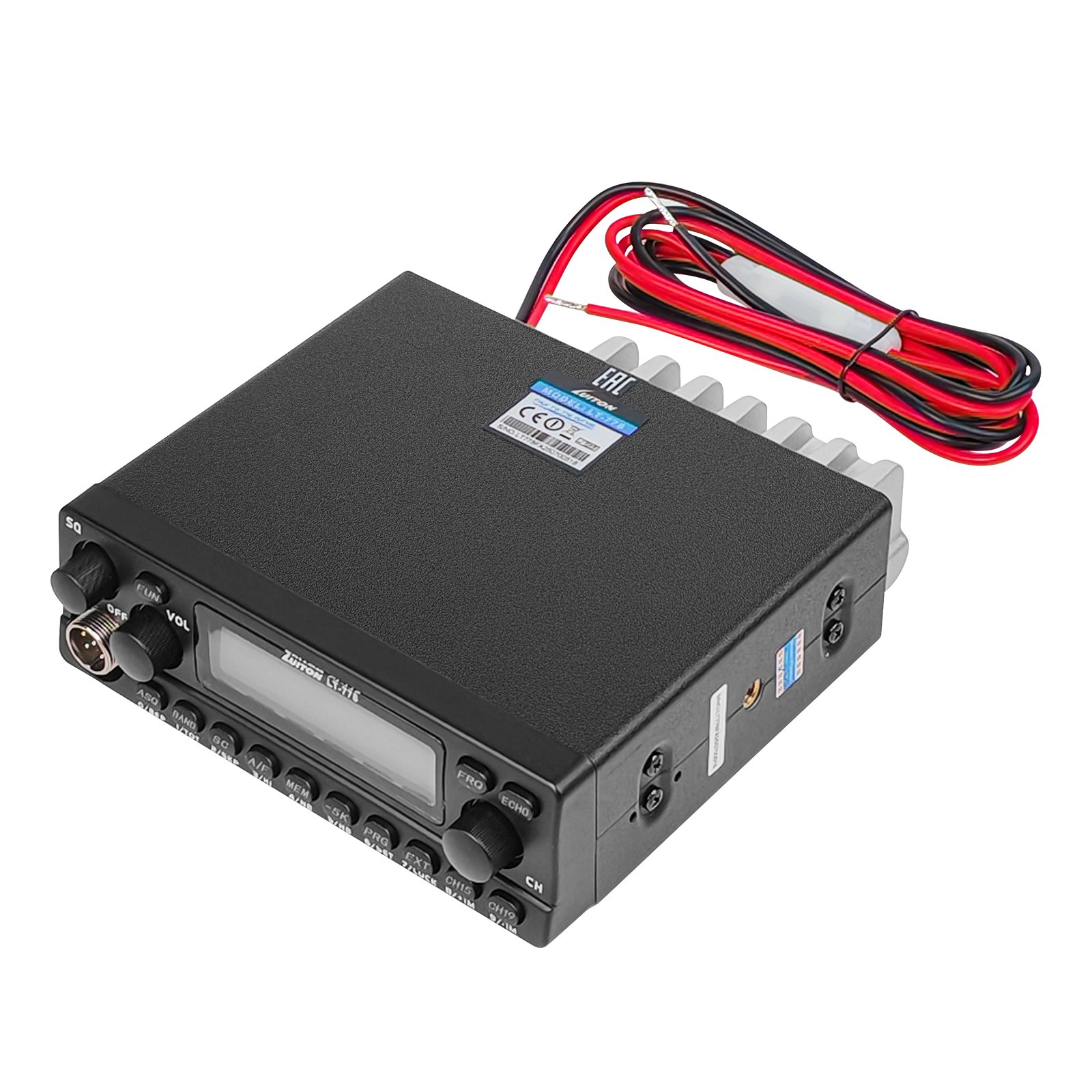

High Power Output CB Radio
The high power output CB Radio supports AM and FM modes, operating between 25.615-30.105MHz(programmable), up to 30.105MHz for flexible communication.
-
Power and Performance
With transmission power options of 12W for AM and up to 60W for FM, this radio ensures strong signals while keeping interference low.
-
Audio Quality
Enjoy clear sound quality with an audio response range of 300Hz to 3kHz and a maximum audio power output of 3W for effective communication.
-
Sensitivity and Selectivity
The radio features high sensitivity levels and excellent adjacent channel selectivity to reduce unwanted noise and improve communication clarity.
-
Compact and Lightweight Design
Its compact size and lightweight design make it easy to install and carry, perfect for on-the-go communication needs.
-
Additional information
| Weight | 1.54 kg |
|---|---|
| Dimensions | 28 × 20 × 7.5 cm |
| Config | LT-778US |
| GENERAL | None |
| Modulation modes | AM/FM |
| Frequency range | 28.000-29.700MHz 25.615-30.105MHz(programmable) |
| Antenna impedance | 50 Ohms |
| Power supply | 13.2V |
| Size | 15.8×4.8×16.5 cm |
| Weight | 1.1kg |
| RECEIVER | None |
| Max sensitivity at 20dB sinad | 0.8uV -113 dBm FM 1.5uV -103 dBm AM |
| Frequency response | 300HZ to 3KHZ in AM/FM |
| Adjacent channel selectivity | 60dB |
| Squelch sensitivity | minimum 0.2 uv -120 dBm maximum 1 mV – 47 dBm |
| Maximum audio power | 3W |
| TRANSMITTER | None |
| Frequency accuracy | +/- 300HZ |
| Transmission power | AM: (PEP12W),15W(PEP60W) FM: 4W.20W. 60W |
| Microphone sensitivity | 3mV |
| Maximum current | max 11A |
| Modulated single distortion | inferior to 5% |
