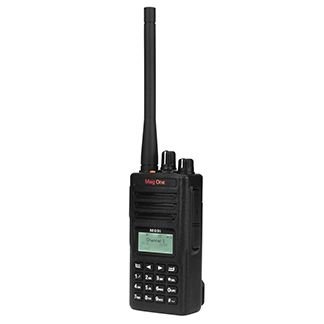

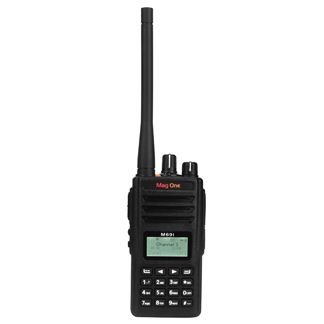

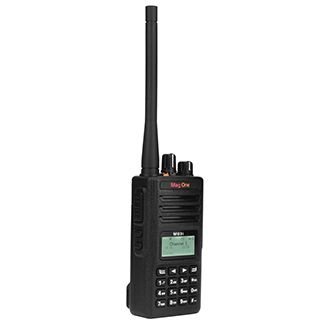

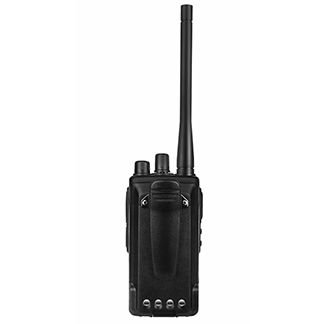

MOTOTRBO-Mag One M69i

The M69i is Mag One’s M-Series premium DMR digital radio, allowing you to communicate with Mag One’s powerful digital capabilities, making managing your business easier and more efficient. Rugged and compact, the M69i delivers outstanding performance and delivers high value without sacrificing quality – giving you more power and flexibility to achieve the best possible communication quality.

M69i enables companies to move from analog to digital communications for better communication quality and product value.

Automatic recognition of digital-analog hybrid mode
The M69i can not only work in digital mode, but is also compatible with previous analog systems, and is especially equipped with analog and digital adaptive functions. The M69i supports automatic recognition of analog and digital signals, allowing users to communicate with existing analog radio users and stay in touch with the new analog/digital dual-mode DMR digital radio users.

Pass-through mode
Pass-through dual slots, a new feature of DMR digital radios, allow you to get two communication paths on one frequency, doubling call capacity without the need for repeaters.

512 channels
Allows up to 512 channels to be stored via programming software, each of which can be individually defined as digital or analog or mixed-mode. These channels can be divided into 32 zones and can be quickly zone-switched via preset programmable side keys.

Protective features
The IP55 rating provides basic protection against dust and water, so users can use it with confidence in most everyday environments.

Voice channel broadcast
When the channel is switched, the walkie-talkie can use voice to announce the current channel. This feature is convenient and fast, so users no longer have to look at the radio when switching channels, thus helping users focus on their work. This feature is available in both digital and analog modes.

Stand-alone mode
This is a function designed in digital mode to confirm the safety status of the user. The stand-alone mode is a built-in timer that requires the user to reset within a preset time interval, and if the user does not press the PTT button to reset the timer, the radio will automatically enter emergency mode and send out an alarm signal.

Lithium-ion battery solutions
In digital communication mode, the use of TDMA technology reduces the battery consumption per call, resulting in more power savings during transmission. The standard 2200mAh Li-ion battery solution provides up to 24 hours of use at 5-5-90 duty cycles (5% transmit, 5% receive, 90% standby).

Emergency alarm function
provides users with emergency rescue alarm prompts to effectively protect the personal safety of staff.

Noise
Cancellation When activated, M69i uses AI technology to filter out the sender’s background ambient noise to make calls clearer.

SMS M69i
has the ability to edit and send text messages, and supports up to 50 pre-made text shortcuts.

Recording function
In digital mode, you can save the call content, call time, and ID code of incoming and outgoing calls. Recording up to 1000 hours* is supported, and recording files can be imported to your computer for saving or playback locally. This feature can help users to backup and listen back to important calls.

* Recording duration is based on test conditions and modalities as defined by the Mag One product. The evaluation value of the walkie-talkie after the measurement is performed in the case of continuous recording. Recording times may vary depending on the call conditions.

• 3 programmable buttons
• Type – C interface
• 1,000 mW internal speaker
• Built-in VOX voice-activated transmitter
• 6 sets of one-touch quick actions
• High and low power options
• LCD display (support Chinese and English characters)
• Invalid channels are temporarily deleted
• Programming passwords
• Scan / 2 priority scan channels / Specify transmit channel

• DTMF Encoding (PTT-ID / Express Calling)
• DTMF Decoding (Remote Closure / Activation)
• CTCSS/DCS encoding and decoding
• Tail tone cancellation

• Busy channel lockout
• Separate staff alerts
• Full call / group call / individual call
• In pass-through mode, both time slots are on at the same time
• Remote Listening Allowed (Bidirectional)
• recording

Frequency range
403 – 470 MHz

Number of
channels 512

Programmable buttons
: 3

Channel spacing
25/12.5 kHz

Battery life (5-5-90 duty cycles in power saving mode)
2200 mAh Li-ion battery: 24 hours [digital] / 17 hours [analog]

Display Yes

Keyboard Yes

Dimensions [HxWxD]
112mm x 61 mm x 39 mm

Weight (approximate)
288g [including lithium battery, antenna and belt clip]

Voice Channel Broadcast
Yes

Automatic recognition of digital-to-analog hybrid mode
Yes

Emergency alarm function
Yes

SMS feature
Yes

Recording function
Yes

IP rating
: IP55

The information on this website is for your reference before purchasing, and you must confirm the relevant product parameters and related information with the respective dealer/distributor before purchasing.
