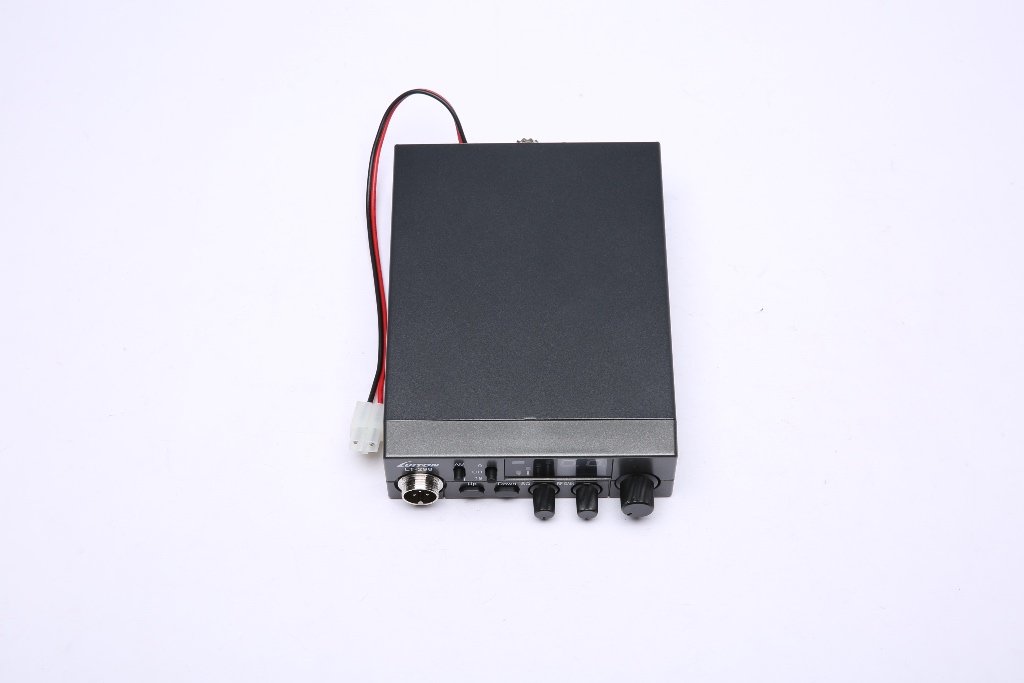

Technical Indicators：
- Channels 40 AM/FM
- Frequency range 26.960 – 27.400MHz
- Frequency control P.L.L.
- Frequency Tolerance ±0.005%
- Operating temperature -20°/+55°C
- DC input voltage 13.8Vdc ±15%
- Size 115 (L) x 38 (A) x 150 (P) mm
- Weight 0.8 kg
Receiver
- System CPU controlled Double conversion super
- IF 1° 10.7 MHz / 2° 450 KHz
- Sensitivity -120dBm for 12dB SINAD (FM)
- -107dBm for 12dB SINAD (AM)
- Audio output @10% THD 2.5W at 8 ohm
- Audio distortion <8% at 1 KHz
- Image rejection 65dB
- Adjacent channel 85dB
- Signal ise ratio 45dB
- Current drain 220mA (stand-by)
Transmitter
- System CPU controlled P.L.L. synthesizer
- Maximum RF power 4W at 13.2Vdc
- Modulation 85% to 90% (AM)
- 2KHz ±0.2 KHz (FM)
- ANT impedance 50 ohm unbalanced
- Current drain 1500mA (at no modulation)
