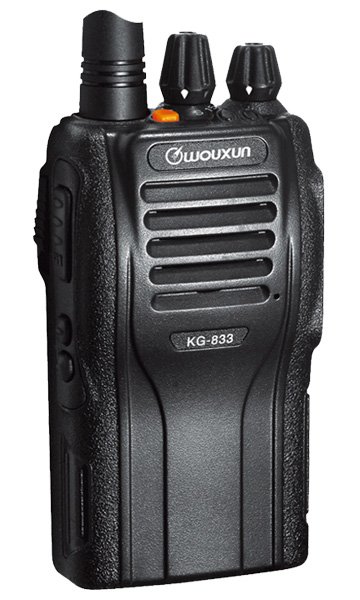

Wouxun-Two Way Radio KG-833
,

Wouxun-Two Way Radio KG-833

Categories: , Brand:

طلب عرض أسعار

  • Add products to the quote list
  • Fill out a request form
  • Get your quotation within 48 hours
TECHNICAL SPECIFICATION
Intergration
   Frequency Range   VHF: 66-88/136-174/245-246MHz
UHF: 300-350/350-390/400-470/450-520MHz
   Channel Capacity16
   Channel Spacing25KHz/12.5KHz
   Maximum Deviation±5KHz to 25KHz     ±2.5KHz to 12.5KHz
   Frequency Stability±2.0ppm
   Operating Voltage7.4V
   Operating Temperature -30℃～+60℃
   Standby Current50mA
   Antenna Impedance50Ω
   Dimension103×62×39 MM
   Weight242g
Transmitter
   RF Power OutputVHF:5W/1W    UHF:4W/1W    PMR446:0.5W-4W
   Modulation16KфF3E/11KфF3E
   Spurious and Harmonious-36dBm＜1GHz   -30dBm＞1GHz
    FM Noise40dB
   Adjacent Channel Power70dB/60dB
   Audio Distortion≤5﹪
Receiver
   Sensitivity(12dB SINAD)0.25μV
   Selectivity60dB
   Intermodulation60dB
   Spurious Response Rejection65dB/70dB
   Audio Power Output500mW
   Audio Distortion≤3﹪(0.5W)
