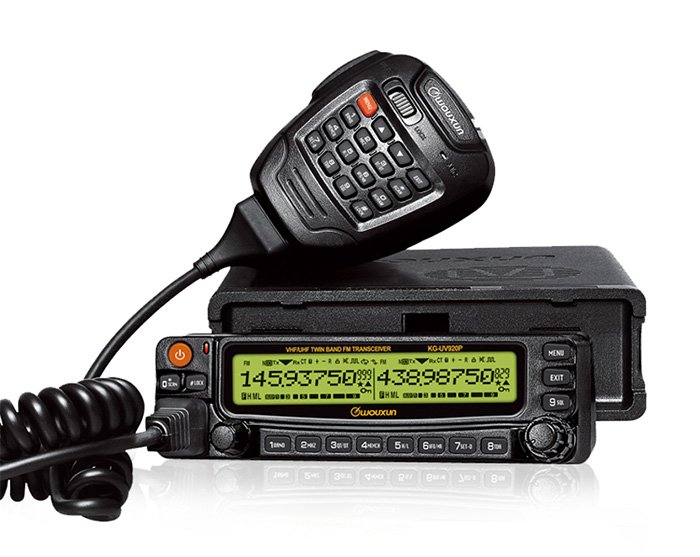

Wouxun-Dual System , Dual Frequency , Car Mobile Radio KG-UV920P
,

Wouxun-Dual System , Dual Frequency , Car Mobile Radio KG-UV920P

分类： , 品牌：

طلب عرض أسعار

  • Add products to the quote list
  • Fill out a request form
  • Get your quotation within 48 hours
TECHNICAL SPECIFICATION
Intergration
   Frequency Range     suitable for different countries or areas
RX and TX
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 216-280MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-146MHz & 222-225MHz
144-148MHz & 420-520MHz
RX , FM , 65MHz-108MHz
   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃～+60℃
   Voltage 13.8VDC±15%
   Antenna Impedance 50Ω
   Weight 1438 g
   Size 140 x 44 x 207 MM
Receiver
Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power transceiver≤3w , hand microphone≤1w
   Sensitivity UHF/VHF：0.25µV（12dB SINAD）
Transmitter
Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Output Power VHF(5W/10W/25W/50W)    UHF(5W/10W/25W/40W)
All Specifications Are According to Related Standard Tests , Since The Growing Development of Technology , If There is Any Change to The Above Specfication Are Without Notice.

Dual System , Dual Frequency , Car Mobile Radio KG-UV920P
