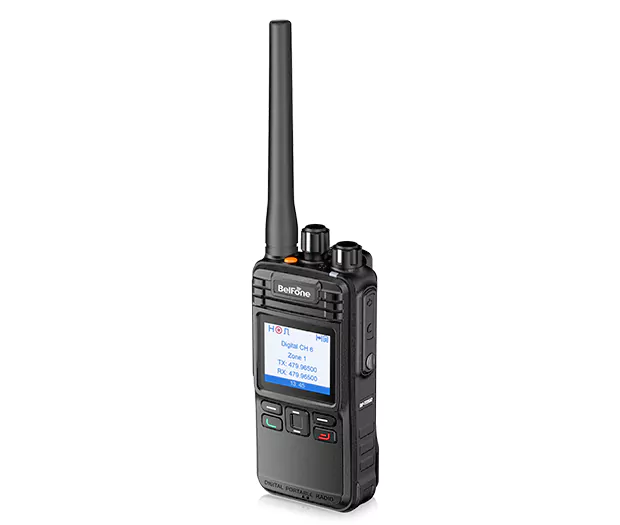

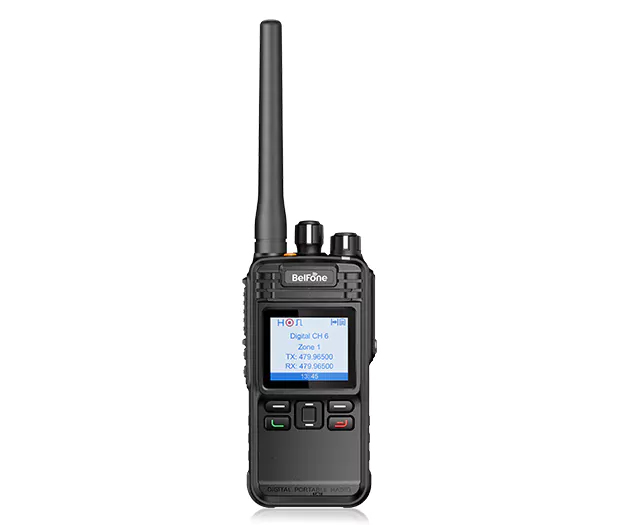

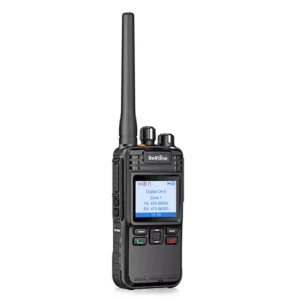

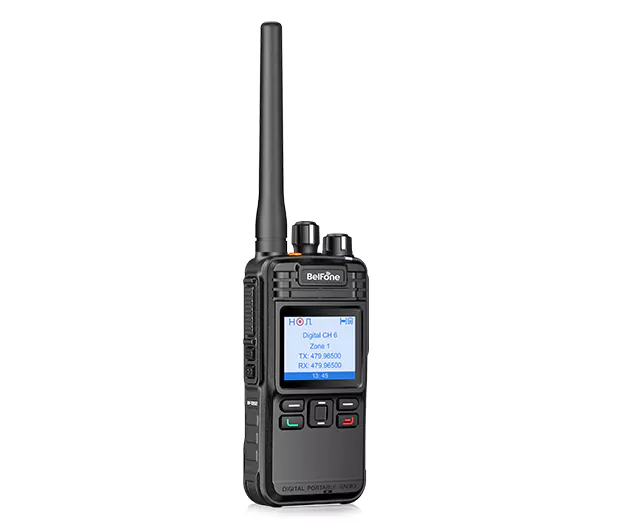

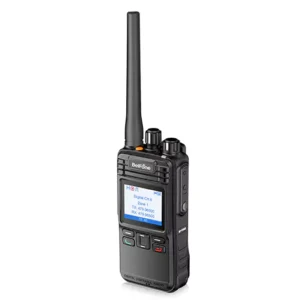

BF-TD512, an lP67 rated DMR radio, is featured with full color screen and half keypad which specially required by some customers. It brings advantages of audio quality, outstanding coverage, and long-lasting battery life. The virtual trunking technology greatly increases spectrum efficiency without any extra costs, lt works with BelFone DMR conventional IP Connect system- SDC to realize more powerful features, delivering revolutionary capabilities to keep..
Highlights
-
Personnel Safety
Mandown: if some worker slips or falls, the mandown function will automatically activate and transmit a signal to other radios for help. Built-in Lone Worker, and Emergency alarms are also available in case of any accident.
-
Automatic Roaming (Programmable)
In an IP multi-site network, this feature enables these radios to automatically roam among all sites and stay connected, delivering more flexibility and efficiency.
-
Voice Recording (optional)
(32G memory-can record over 400 hours’communications)
Support voice recording, and you can play the recording on your radio. This is a radio with a good and long memory.
-
Radio Priority-Based Interruption
This function enables a radio with higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.
-
IP67 Protection
Tightly sealed against dust, spills, sprays and unexpected showers, ensuring outstanding performance in tough environments.
BF-TD512
-
DMO True 2-Slots
-
Digital/Analog Dual Modes
-
Advanced Encryption with RC4 Technology
-
Smart Virtual Trunking
Specifications
-
General
| Frequency Range | VHF:136-174 MHz / UHF:350-400 MHz / UHF:400-480 MHz / UHF:450-520 MHz |
| Channel Capacity | 512 |
| Zone | 32 |
| Channel Spacing | 12.5KHz/25KHz |
| Working Voltage | DC 7.4V (±20%) |
| Battery Capacity | 2000 mAh |
| Average Battery Life（5/5/90） | Digital 22Hours / Analog 16 Hours |
| Recording Time | 400 Hours |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 57（L）* 32(W)* 119 (H)mm |
| Weight | 239g(Including Battery) |
-
Transmitter
| Power Output | ≤5W |
| 4FSK Modulation | 12.5kHz Only data：7K60FXD 12.5kHz data and audio：7K60FXE |
| FM Modulation | 12.5 kHz：8K50F3E； 25 kHz：16K0F3E； |
| Modulation Limitation | +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz |
| FM Noise | -40dB |
| Spurious Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3 dB |
| Audio Distortion | 0.03 |
| Digital Vocoder | AMBE |
-
Receiver
| Digital Sensitivity | 5% BER：0.25 uV |
| Analog Sensitive | 0.25 uV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selection | 60dB |
| Spurious Suppression | 60dB |
| FM Noise | -40dB |
| Frequency Response | +1/-3dB |
| Rated Audio Power | 0.5W |
| Maximum Audio Power | 1.3W |
| Rated Audio Distortion | 3% (Typical) |
| Conduction Radiation | -57dBm |
| GPS Precision | Horizontal Accuracy≤-10m（with well signal） |
| TTFF（first location）Cold Boot | < 1 Minute （with well signal） |
| TTFF（first location）Hot Boot | < 10 Second （with well signal） |
-
Environmental Specifications
| Operational Temperature | -20℃—+60℃ |
| Storage Temperature | -30℃—+85℃ |
| Moisture Proof | MIL-STD-810G Standard |
| Shock & Vibration | MIL-STD-810G Standard |
| Dust & Water Proof | IP68 |
