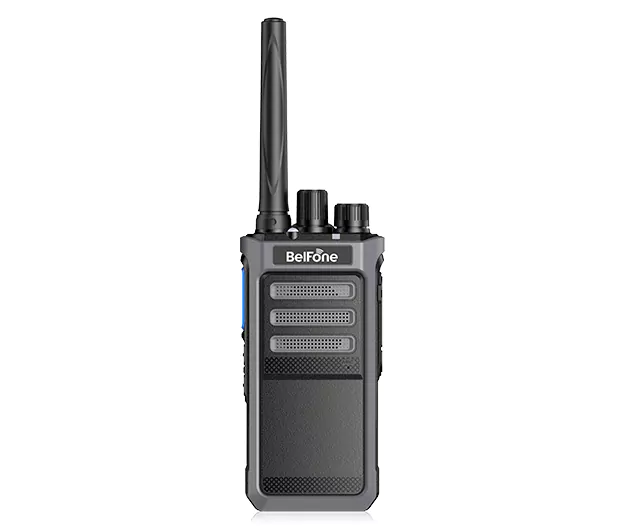

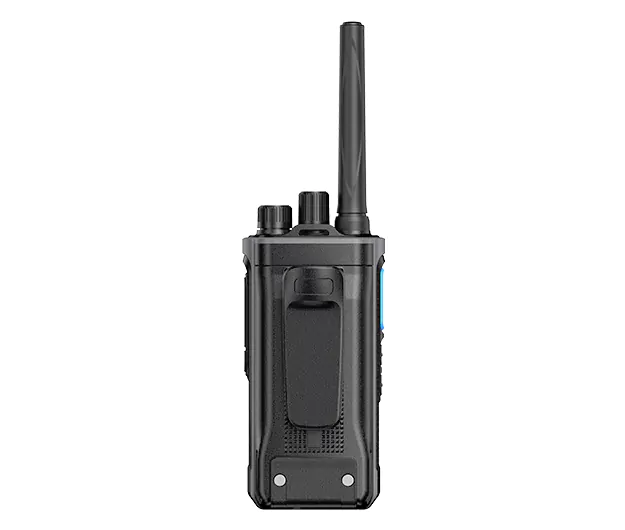

BF-AP8016 new generation 8W analog two-way radio, can adapt multi-scenes for its many outstanding advantages in many aspects like modern design, strong signal penetration, long battery life, excellent sound quality, drop resistance and compression ability, etc., guaranteeing continuity and reliability effectively.
Highlights
8W High Power
Squelch Level
Channel Matching
Type-C Charging Mode
Busy Channel Locking
Special Signal Mode
Voice operated exchange
Noise Reduction (Optional)
Squelch Level
Channel Matching
Type-C Charging Mode
Busy Channel Locking
Special Signal Mode
Voice operated exchange
Noise Reduction (Optional)
Specifications
-
General
| Frequency Range | UHF: 400-480MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25 KHz /12.5 KHz |
| Frequency Stability | ≤±2.5 ppm |
| Antenna Impedance | 50Ω |
| Working Voltage | DC 7.4V (±20%) |
| Battery Capacity | 2000mAh |
| Dimension | 54* 35* 118mm |
| Weight | 233g |
-
Transmitter
| Power Output | ≤8W |
| 4FSK Modulation | 11KφF3E/16KφF3E |
| FM Modulation | ≤±2.5KHz /±5.0KHz |
| Adjacent Channel Power | 60dB |
| Audio Distortion | ＜5% |
-
Receiver
| Analog Sensitive | ≤-122dBm(12dB SINAD) |
| Intermodulation | ≥60dB(Wide)/ 55dB (Narrow) |
| Adjacent Channel Selection | ≥60dB(Wide)/ 55dB(Narrow) |
| Spurious Suppression | ≥60dB(Wide)/ 55dB(Narrow) |
| Rated Audio Power | 0.5W |
| Rated Audio Distortion | ≤5% |
-
Environmental Specifications
| Operational Temperature | -20℃～+60℃ |
| Storage Temperature | -30℃～+70℃ |
