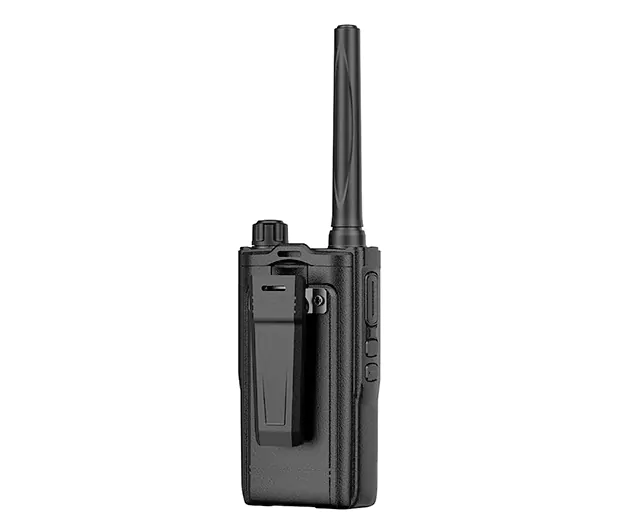

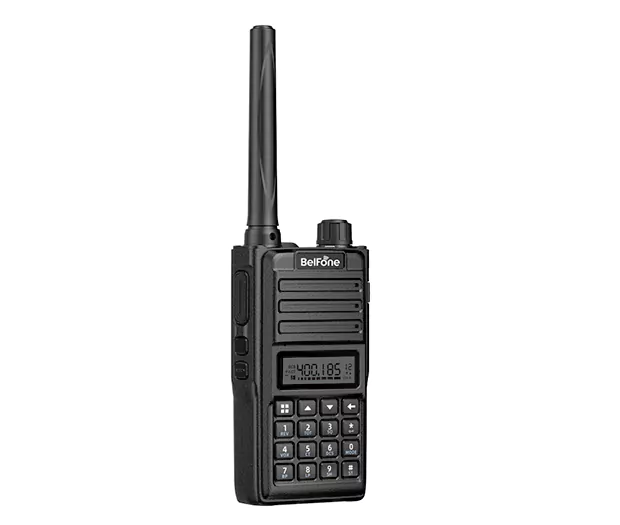

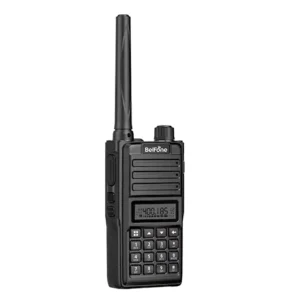

BF-325 is an analog FM transceiver that integrates analog technology perfectly to enhance communication efficiency. Designed with a multifunctional full keyboard, it brings more convenience for quick operation. Its robust structure and multiple charging modes make it ideal for a wide range of applications. Bringing commercial users with reliable and quick respond communications.
Highlights
VOX Function
Squelch Levels
Signaling Encryption
Type-C Interface
BCL(Busy channel locking)
One-key Frequency Matching
Squelch Levels
Signaling Encryption
Type-C Interface
BCL(Busy channel locking)
One-key Frequency Matching
Specifications
-
General
| Frequency Range | UHF: 400-480MHz |
| Channel Capacity | 99 |
| Channel Spacing | 25 KHz /12.5 KHz |
| Working Voltage | DC 3.7V (±20%) |
| Battery Capacity | 1000mAh |
| Frequency Stability | ≤±2.5 ppm |
| Antenna Impedance | 50Ω |
| Dimension | 53.1 (L)* 28.7 (W)* 100.7 (H)mm |
| Weight | 160g (Including Battery) |
-
Transmitter
| Power Output | ≤3W |
| 4FSK Modulation | 11KφF3E/16KφF3E |
| FM Modulation | ≤±2.5KHz /±5.0KHz |
| Adjacent Channel Power | 60dB |
| Audio Distortion | ＜5% |
-
Receiver
| Analog Sensitive | ≤-122dBm (12dB SINAD) |
| Intermodulation | ≥60dB (Wide) / 55dB (Narrow) |
| Adjacent Channel Selection | ≥60dB (Wide) / 55dB (Narrow) |
| Spurious Suppression | ≥60dB (Wide) / 55dB (Narrow) |
| Rated Audio Power | 0.5W |
| Rated Audio Distortion | ≤5% |
-
Environmental Specifications
| Operational Temperature | -20℃～+60℃ |
| Storage Temperature | -30℃～+70℃ |
