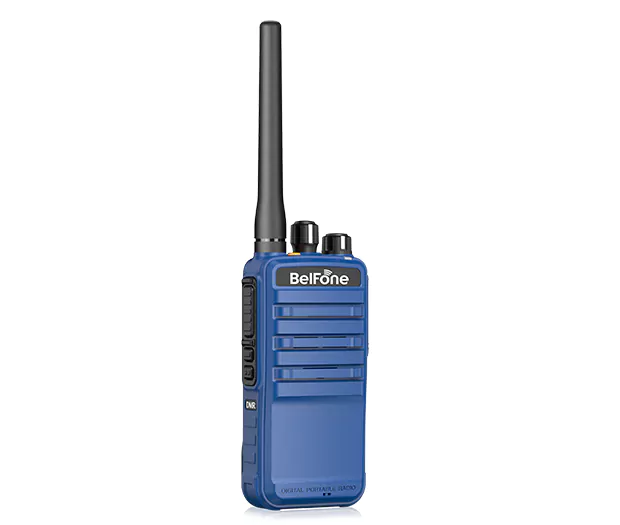

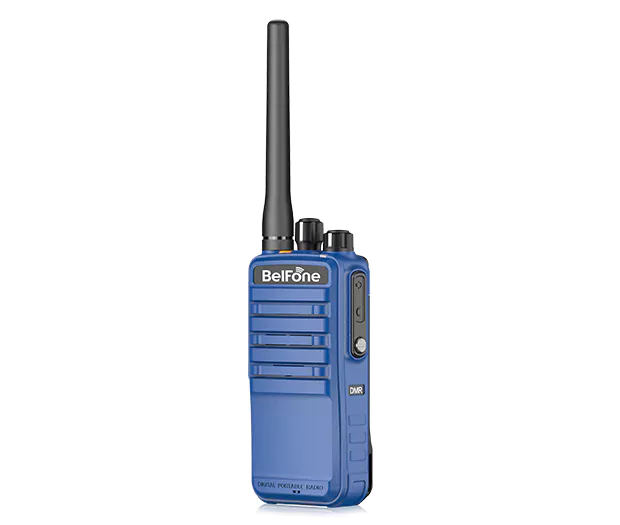

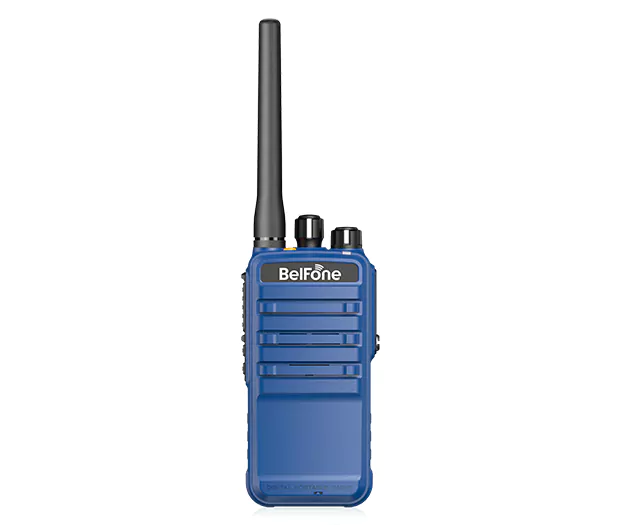

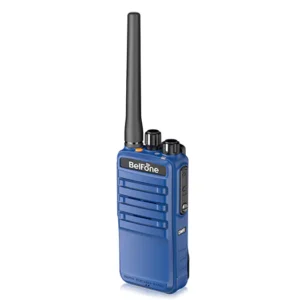

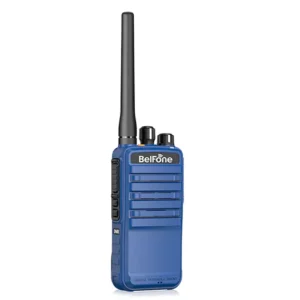

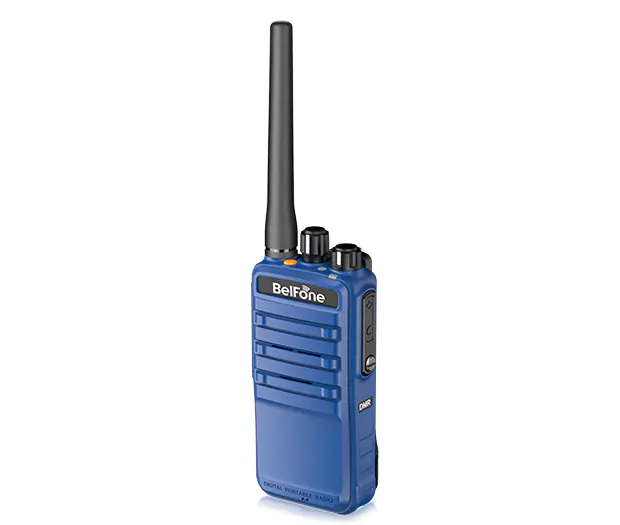

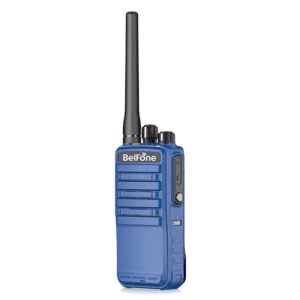

Designed for usage in hazardous environment with combustible gas or dust, TD510EX intrinsically safe provides the best of the class two-way radio functionalities, such as integrated GPS module, recording, Man Down, emergency button and enhanced audio quality. It is a productivity tool and also a workplace safety insurance measure.
Highlights
-
IIB T4 GB
BF-TD510Ex are two intrinsically safe DMR two-way radios with an explosion-proof circuit design as well as a shatter-resistant structure. Their optimal stability and safety easily meet the challenges of explosive work environments.
-
Voice Recording
With a 32G memory, BF-TD510Ex can support over 400 hours’ communications. These radios allow you to record and share your voice easily, replaying your communications during the operation. These are two explosion-proof radios with a good and long memory.
-
Advanced Encryption with ARC4 & AES256
The ARC4 Technology together with AES256 keeps your communications safe and private, optimizing your information safety.
-
GPS Positioning
With built-in GPS, the user can track the whereabouts of a radio whenever he wants. You can know where all your workers are in real-time.
-
DMO True 2-slots
In direct mode these radios support two voice calls simultaneously due to DMR two timeslots, which means two communication paths at one frequency with no extra costs.
-
Personnel Safety
If a worker slips or falls, the radio will immediately activate the integrated Mandown function and transmit a signal to other radios for help. The Lone Worker feature and Emergency Alarm are also available in case of any accident.
-
Digital/Analog Dual Modes
This enables BF-TD510Ex to receive both digital and analog signals on the same channel and can automatically switch into a matching mode for efficient communications.
-
IP68 Protection
BF-TD510Ex is tightly sealed against dust, spills, sprays and unexpected showers, ensuring outstanding performance in challenging environments.
Specifications
-
General
| Frequency Range | VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz |
| Channel Capacity | 160 |
| Zone | 32 |
| Channel Spacing | 12.5KHz/ 25KHz |
| Working Voltage | DC7.4V (±20％) |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Battery Capacity | 1500mAh |
| Average Battery Life（5/5/90） | Digital 16 hours; Analog 12 hours |
| Dimension | 60.8(L)* 35.7(W)* 118.5(H) mm |
| Weight | 250g (including battery pack) |
-
Transmitter
| Power Output | High power: 3.5W; Low power: 1W |
| 4FSK Modulation | 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE |
| FM Modulation | 12.5KHz: 8K50F3E/ 25KHz: 16KφF3E |
| Modulation Limitation | +/- 2.5KHz |
| FM Noise | -40dB |
| Spurious Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3dB |
| Digital Vocoder | AMBE++ |
| Audio Distortion | ≤3% |
-
Receiver
| Digital Sensitivity | 5% BER: 0.25 uV |
| Analog Sensitive | 0.25 uV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selection | 60dB |
| Spurious Suppression | 60dB |
| FM Noise | -40dB |
| Frequency Response | +1/-3 dB |
| Rated Audio Power | 1.5W |
| Rated Audio Distortion | 3% (typical) |
| Conduction Radiation | -57dBm |
| GPS Precision | Horizontal Accuracy ≤10m (with good signal) |
| TTFF（first location）Cold Boot | ＜1 minute(with good signal) |
| TTFF（first location）Hot Boot | ＜10 seconds (with good signal) |
-
Environmental Specifications
| Operational Temperature | -30℃~+60℃ |
| Storage Temperature | -40℃~+85℃ |
| Dust & Water Proof | IP68 |
| Shock & Vibration | MIL-STD-810C/D/E/F |
| Gas Protection | Ex ib IIB T4 GB |
