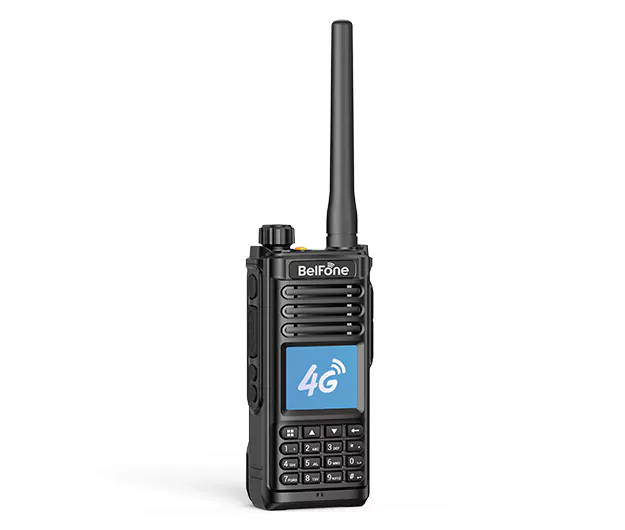

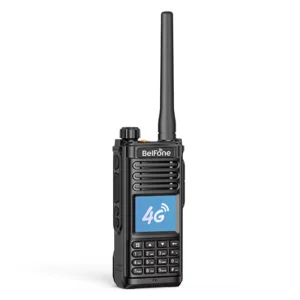

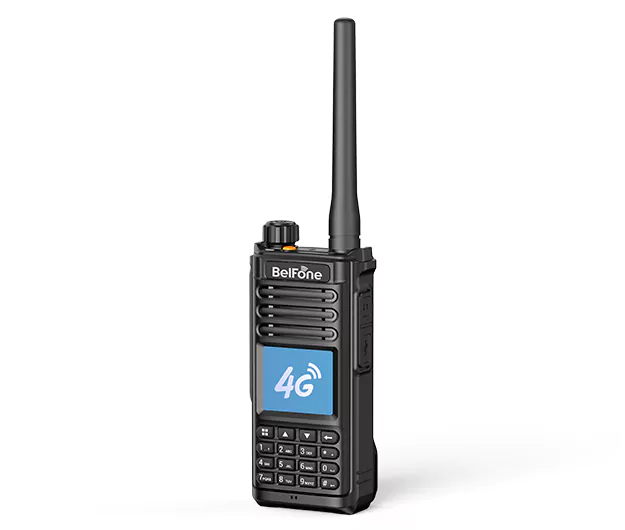

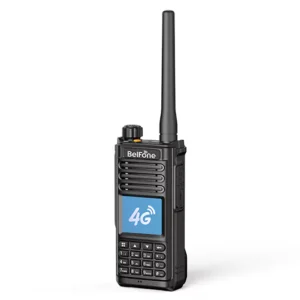

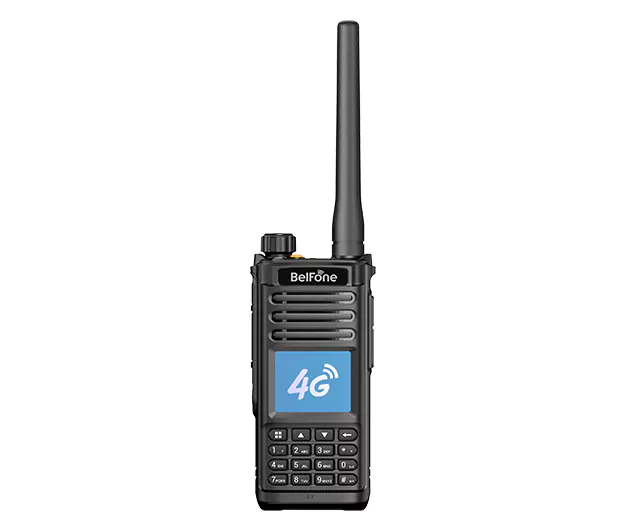

BF-TP800 is a new advanced multi-mode radio which integrates public broadband and narrowband PMR technology to provide critical voice and data services. It brings flexible usability of public network, private network, mixed network and gateway mode, and performance advancements like split-screen, dual PTT, GPS, recording, Bluetooth, etc., to be convenient and benefit for every aspect of radio experience.
Highlights
-
Multi-mode Hybrid, Flexible Communications
A multimode radio works in DMR, analog and PoC（public 4G/3G/2G）mode, which could always keep contact, to communicate whenever and wherever.
-
Intelligent Gateway Mode
This smart radio provides outstanding connectivity of PMR （DMR or analog） and PoC, brings all the advantages of narrowband and broadband technologies, bridging the voice communication over different networks.
-
Intuitive Multi-Active Split-screen
Designed with full keypad, 1.77”transflective LCD, it offers you the choice of narrowband broadband display up and down.
-
5000mAh Extended Battery Life
It comes with a 14-hour smart lithium battery and a built-in PTC protection to guarantee the safety and reliability.
Specifications
-
General
| Frequency Range | VHF: 136-174MHZ； UHF: 350-390MHz/ 400-480MHz/ 450-520MHz |
| Channel Capacity | 100 |
| Channel Spacing | 12.5KHz/ 25KHz |
| Working Voltage | DC 3.7V |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Battery Capacity | 5000 mAh |
| Average Battery Life（5/5/90） | Public Network: 14hours； PMR Network: 11 hours |
| Dimension | 123* 60* 30mm (Excluding antenna) |
| Weight | 300g (Excluding battery) |
| Network Standards | LTE-FDD: B1/B3/B5/B8； LTE-TDD: B38/B39/B40/B41；WCDMA: B1/B8 TD-SCDMA: B34/B39 |
-
Transmitter
| Power Output | High power: 4.0 ±0.2W; Low power: 1.0 ±0.2W |
| 4FSK Modulation | 12.5KHz data only: 7K60FXD； 12.5KHz data and voice: 7K60FXE |
| Modulation Limitation | ±2.5KHz |
| Spurious Emission | -36 dBm 1GHz/ -30 dBm 1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3dB |
| Audio Distortion | 0.03 |
-
Receiver
| Digital Sensitivity | 5% BER: 0.25 V |
| Analog Sensitive | 0.22uV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selection | 50dB |
| Spurious Suppression | ETSI/TIA603: 55dB |
| FM Noise | 40dB |
| Frequency Response | +1/-3 dB |
| Rated Audio Power | 1.5W |
| Rated Audio Distortion | ≤5% |
| Conduction Radiation | 3%(typical) |
| GPS Precision | Horizontal Accuracy 10m (with good signal) |
-
Environmental Specifications
| Operational Temperature | -20 ~+65℃ |
| Storage Temperature | -30 ~+85℃ |
| Dust & Water Proof | IP54 |
| Shock & Vibration | MIL-STD-810C/D/E/F |
