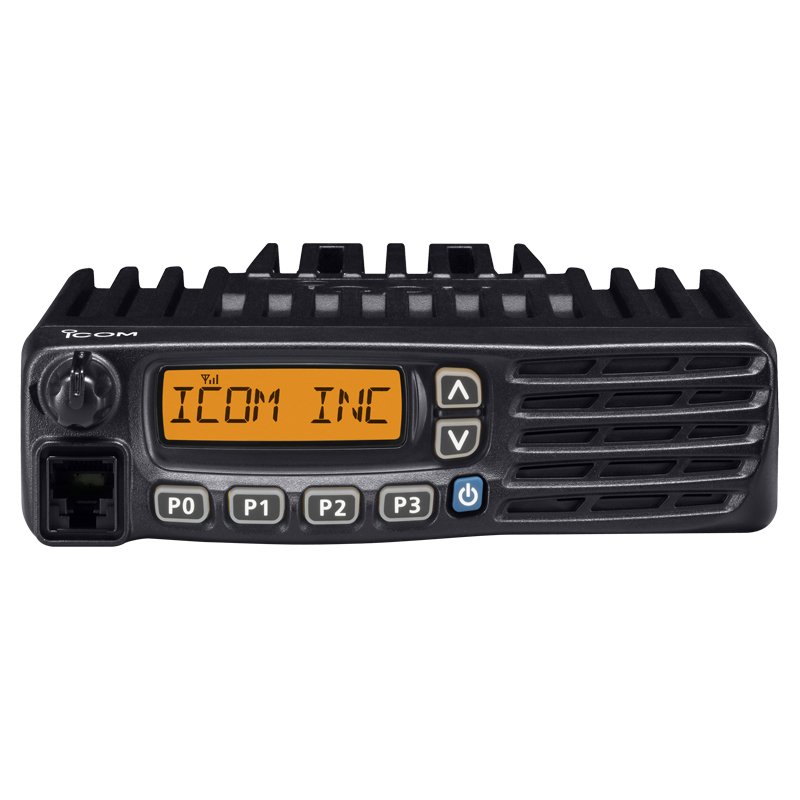

VHF/IDAS DIGITAL——IC-F5220D(50W)
UHF/IDAS DIGITAL——IC-F6220D(45W)
-
IDAS™ Digital Mode Operation
The IC-F5220D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking.
-
4W Front Mounted Speaker
4 watts* front facing speaker delivers clear and loud audio throughout a vehicle’s cabin. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
-
Channel Announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.
-
Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
-
Built Military Rugged
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL-STD-810 environmental tests.
-
Optional Accessory Cable
An external GPS receiver, PC or other equipment can be connected with the optional OPC-2078 (D-sub 25-pin) or OPC-1939 (D-sub 15-pin). The ACC connector provides an ignition switch, external PTT, serial input/output, horn honk, channel control and public address functions, according to the programming.
-
IDAS™ Digital Mode Features
- Up to 500 individual and up to 500 group ID aliases (Each for single-site/multi-site/conventional)
- PTT ID and ANI
- Call alert
- Status
- SDM (Short Data Message)
- Radio check (RX)
- Stun/kill/revive (RX)
- RAN (Radio Access Number)
- Remote monitor (RX)
- Emergency
- Digital voice scrambler
- ATB (All Trunks Busy) ring back
- GPS data (PC and software required to show received position data)
-
Other Features
- CTCSS/DTCS encoder/decoder*
- 128 channels with 8 zones
- Microphone hanger action programmable
- Power-on password function
- Talk around function
- Voting scan
- Nuisance delete function
- Forced narrow function*
- Time-out-timer, lock-out penalty
