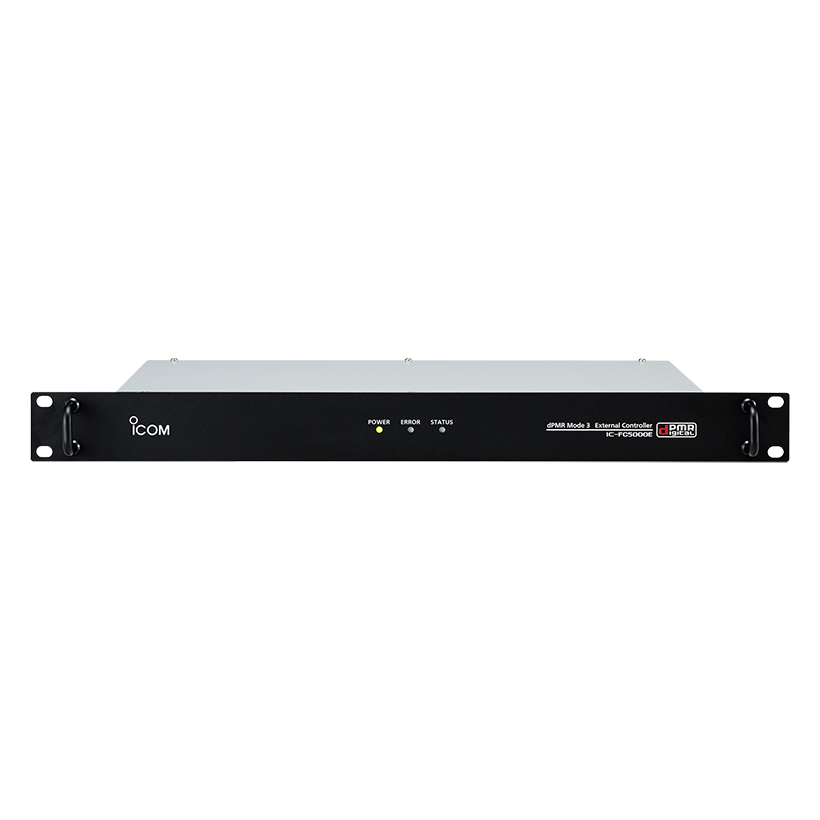

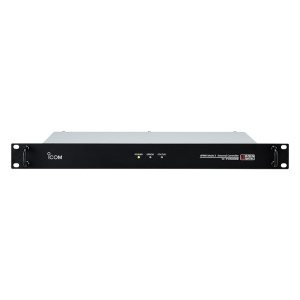

ICOM-FC5000E dPMR™ Mode 3 Digital Trunking

The IC-FC5000E dPMR Mode 3 trunking system uses a centralized control channel system. The control channel is independent of the traffic channels and continuously transmits a control signal. The system allocates a traffic channel for the whole duration of a call and can provide quick response during a series of calls.The dPMR Mode 3 trunking system is suited to controlling a large number of users in systems with congested traffic channels.

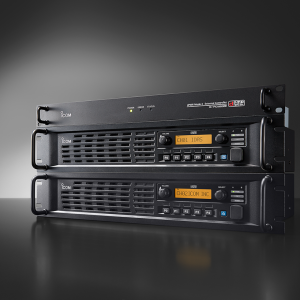

The IC-FC5000E controls up to 32 channels of connected repeaters over an IP network. (One control channel and up to 31 traffic channels.) The IC-FC5000E can be configured with the CS-FC5000 Controller Management Software via a web browser through an IP network.

When used with the CS-FC5000SCS, System Control Software, up to 32 trunking controllers can be connected over an IP network for linking multiple sites. A radio can communicate with other radios registered to the interlinked trunked sites for multi-site roaming and calling service.

A region is comprised of up to 32 repeater sites controlled under the CS-FC5000SCS. The CS-FC5000SCS can be interconnected and provides multi-region connnection for region wide network virtually across the country.

A four channel license activation key is supplied with the IC-FC5000E controller for a single site system. When increasing repeater channels or deploying multi-site or multi-region system, additional channel license activation keys are required for each repeater channel.

If all traffic channels are busy, the user’s call request is automatically stored in the call queuing until a traffic channel is available. The emergency call can give priority level to a normal call in the call queuing, and the emergency call can force another normal priority call to be cleared down.

1. Configures the system settings including repeater channels, fleet settings and various system options
2. Firmware update and remote reboot over an IP network
3. Web based software allows connecting of multiple clients (up to 20 accounts)
4. Supports localized language for system labels
5. Save and load the system setting file for the system backup
6. Exports SCF (System Configuration File) for programming terminal radios

1. Optional RS-MGR2 System Manager software maintains the traffic and system logs to assist in system administration
2. A traffic channel can be configured as a secondary control channel
3. Telephone interconnect (Planned)
