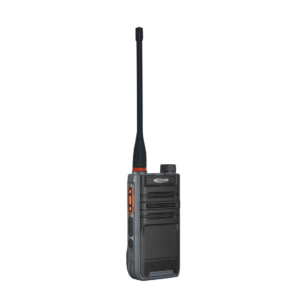

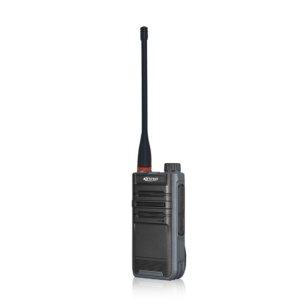

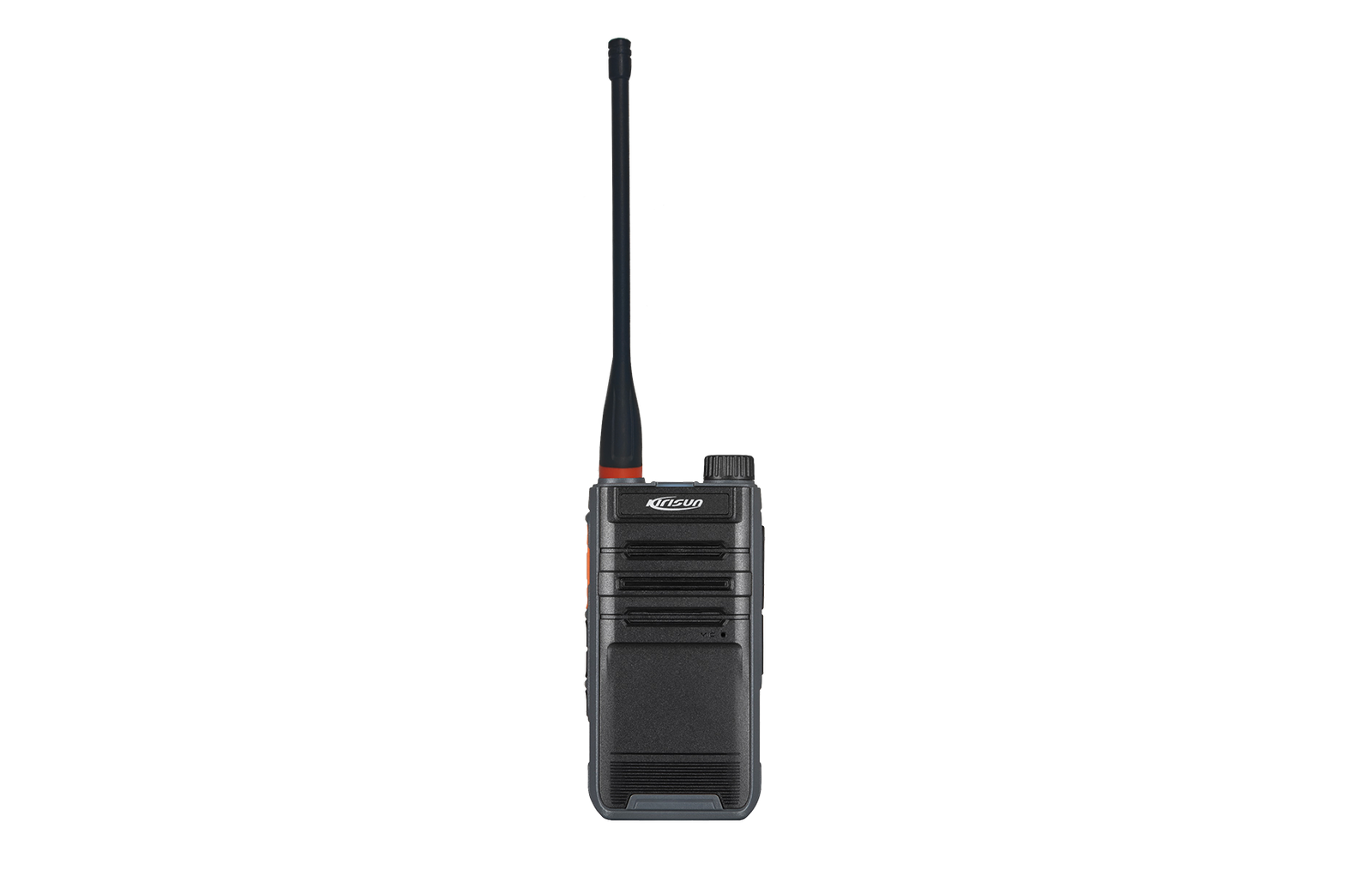

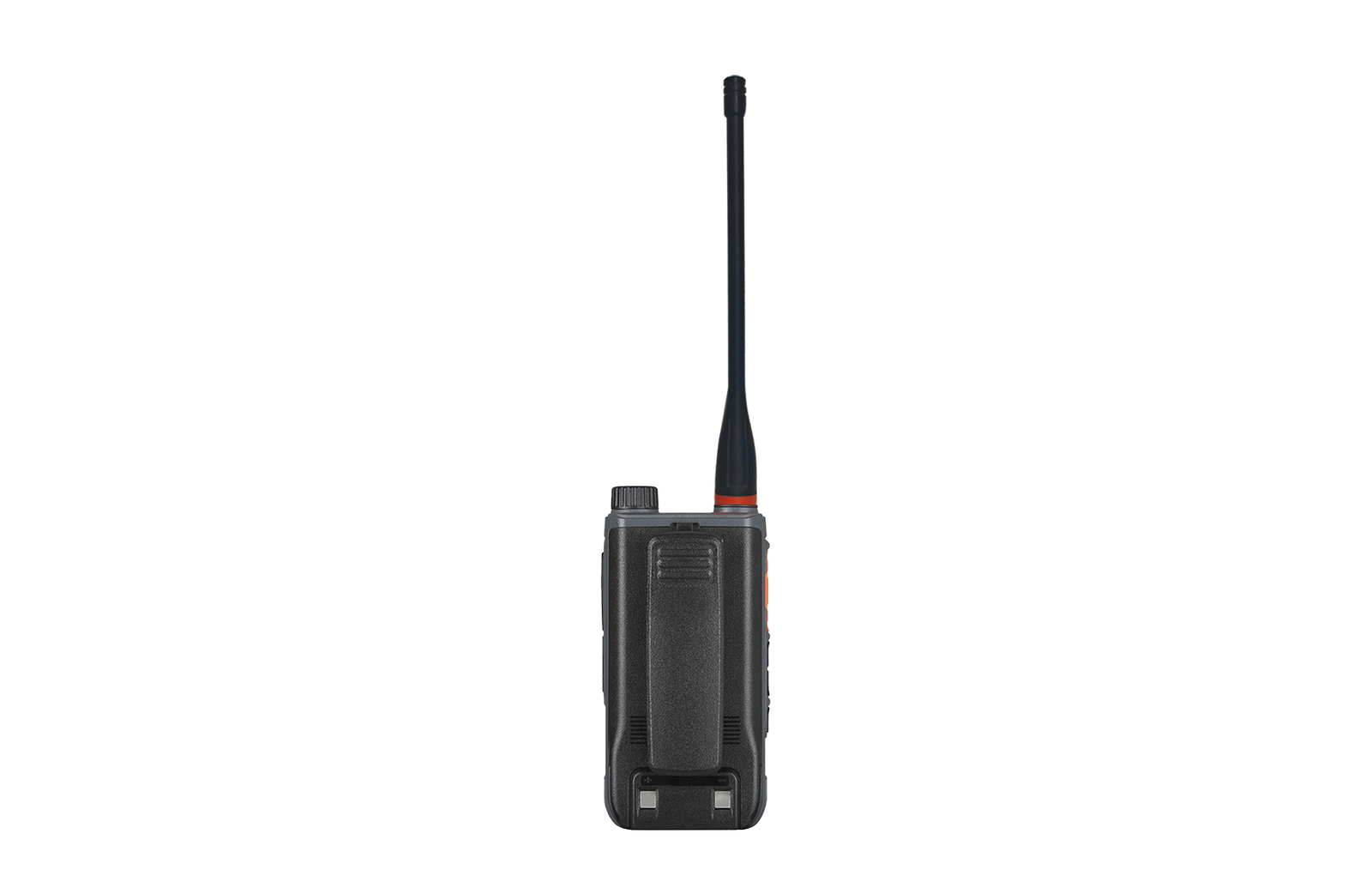

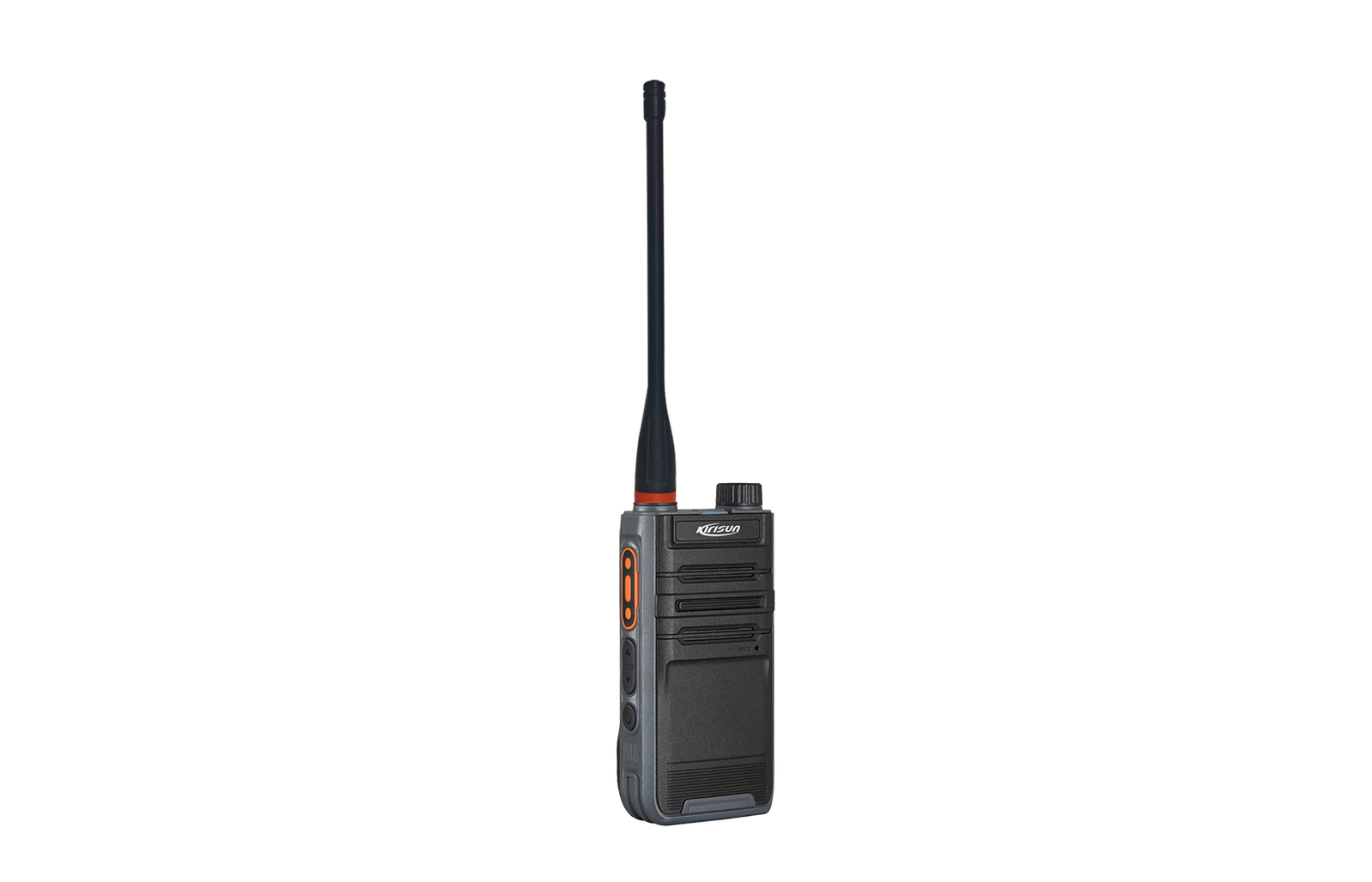

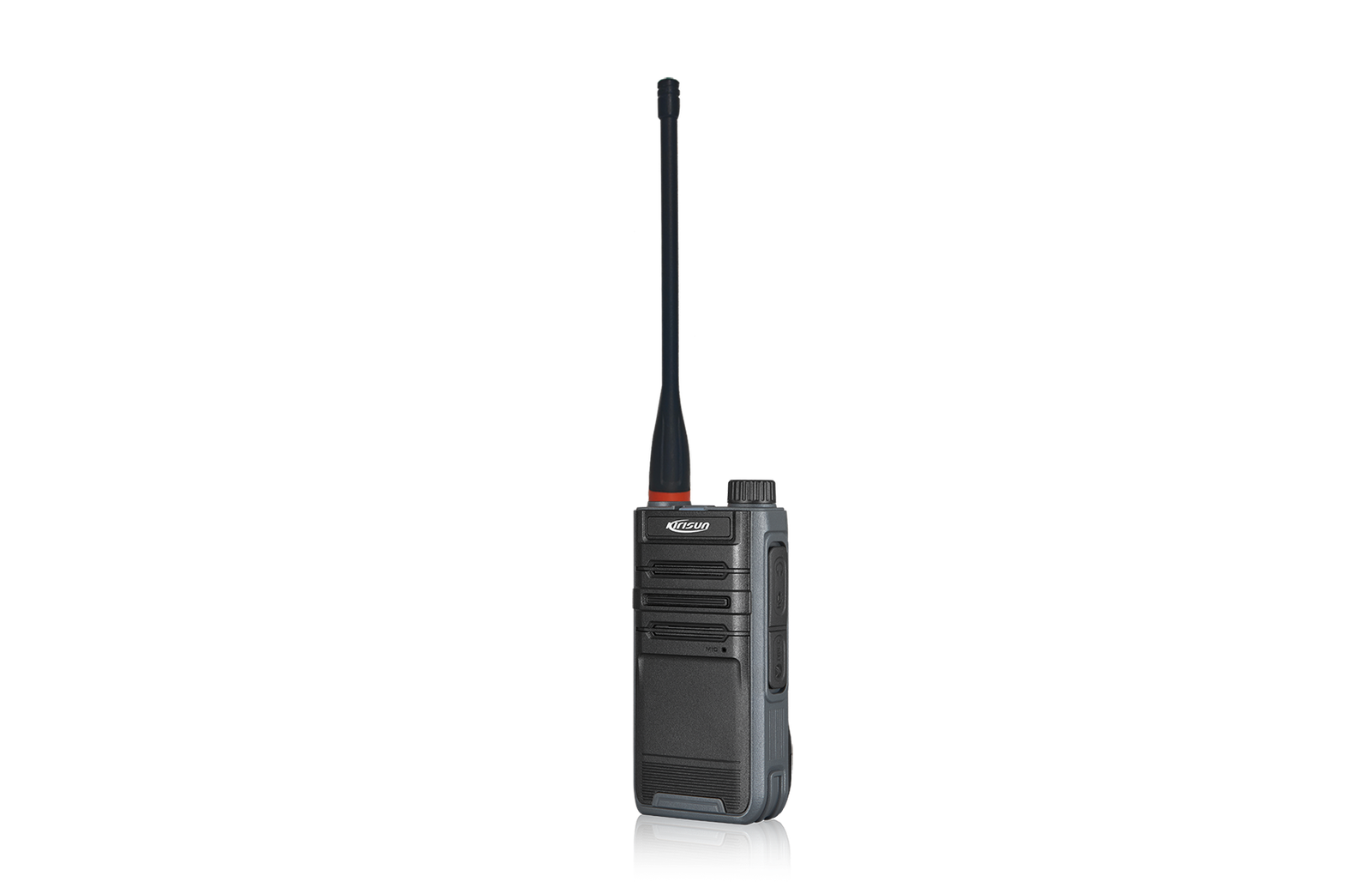

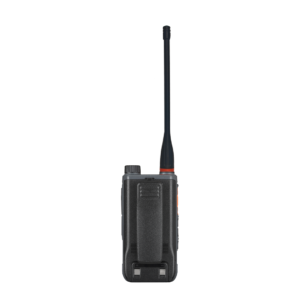

A new generation of business radios, the entry level DP275 is compact, lightweight, and deliver loud and clear audio that allows you to hear and be heard in background noise. With it’s innovative design, the DP275 has better performance than analogue radios. It is designed to offer stable communication while remaining cost-effective, making it suitable for everyday business communication.
Built-in 2W high-power loudspeaker to deliver loud and clear audio.
The frosted texture and anti slip shell design make it easy for users to operate with one hand.
The DP275 also operates on analogue, to ease migration of devices to digital radio technology.
Support battery power saving function. When the radio enters power saving mode, the working time is longer.
- Frequency Range——————UHF: 400-470MHZ
-
Channel Capacity——————16
-
Channel Spacing——————12.5kHz/25kHz
-
Operating Voltage——————7.5V DC+20%
-
Operating Temperature—————— -20°C~+60°C
-
Battery Capacity——————1400mAh
-
Dimension H*W*D(mm)——————116*60*34mm
-
Weight (with batteryand antenna)——————≤216g
-
Battery Life (5-5-90 Duty Cycle)—————— 10 Hours
-
Frequency Stability—————— 1.5ppm
- Power Output——————4W
-
FM Hum and Noise——————≥40dB@12.5kHz; ≥45dB@25kHz
-
Frequency Deviation——————≤5kHz@25kHz; ≤2.5kHz@12.5kHz
-
Audio Distortion——————≤3%
-
Audio Response—————— +1~-3dB
- Sensitivity—————— -121dBm
-
Intermodulation—————— ≥65dB@12.5/20/25kHz
-
Adjacent Channel Selectivity—————— ≥60dB@12.5kHz;≥70dB@25kHz
-
Max. Audio Power——————2W
-
Rated Audio Power—————— ≤3%
-
Hum and Noise—————— ≥40dB@12.5kHz; ≥45dB@25kHz
-
Conducted Spurious Emission—————— ＜-57dBm
