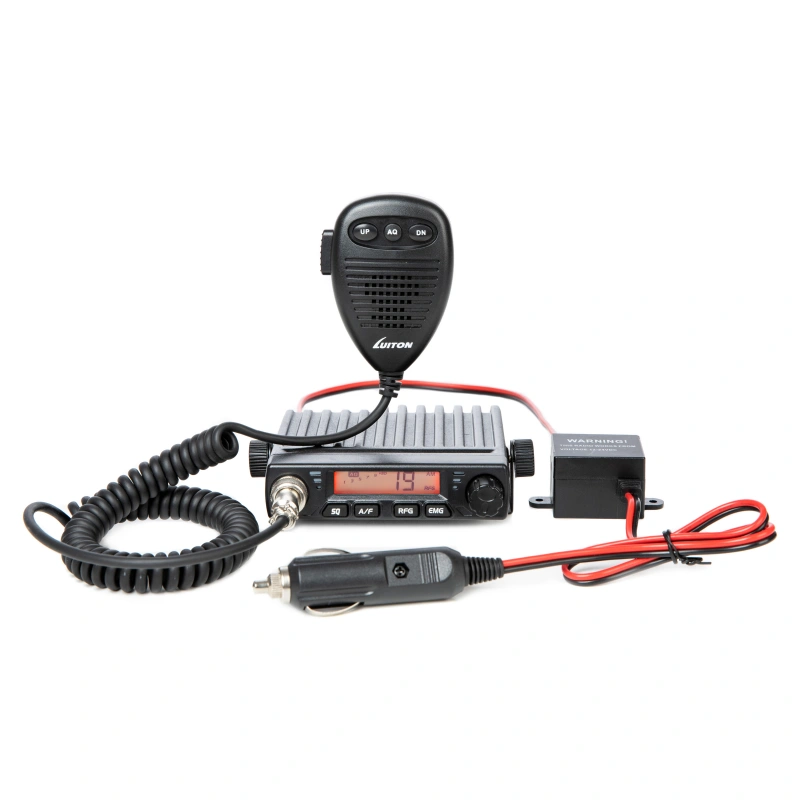

CB Radio with AM/FM Modulation
- This CB radio operates in AM/FM modes within the frequency range of 25.565–27.99125MHz, providing a power output of 4W for clear communication with minimal interference.
Reliable Communication
- With a power output of 4W, this radio ensures clear transmission, allowing you to communicate effectively without worrying about interference.
Compact and Lightweight Design
- Measuring 104mm x 108mm x 25mm and weighing only 416g, this radio is designed for easy installation in various vehicles without taking up much space.
Durable Operating Range
- Built to operate in temperatures from -20°C to +50°C, this radio is reliable in different weather conditions, making it suitable for various environments.
Efficient Power Consumption
- This radio uses a low current drain of 2A max during transmission and only 0.3A while receiving, which helps save power and prolongs usage time.
Additional information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 19 × 14.5 × 7.5 cm |
| Config | LT-198 CB Radio |
| GENERAL | None |
| Modulation modes | AM/FM |
| Frequency range | 25.565– 27.99125MHz |
| Frequency Control  | P.L.L. |
| Frequency Tolerance | ±5.0ppm |
| Operating Temperature |  -20°/+50°C |
| DC Input Voltage    | 13.2V |
| Dimensions (H × W × D) | 104mm×108mm×25mm |
| Weight | 416g |
| Antenna Connector | UHF,SO-239 |
| Current drain     | Transmit: 2A MAX Receive: Squelched 0.3A VOL Max: 0.8A |
| Transmitter | None |
| Power Output | 4 Watt AM/FM |
| Transmission Interference | inferior to 4nW(-54dbm) |
| Modulation Signal Distortion | inferior to 5% |
| Output Impedance | 50 ohms |
| Receiver | NONE |
| Sensitivity | Less than 1uV for 10dB(S+N)/N |
| Image Rejection    | 70dB |
| Adjacent Channel Rejection    | 60dB |
| IF Frequencies | 1st 10.695MHz |
| AGC | 2nd 455KHz Less than 10dB change in audio |
| Squelch | Output for inputs from 10 to 50000uV Less than 1uV |
| Audio Output Power | 1 Watt |
| Frequency Response | 300-3000Hz |
