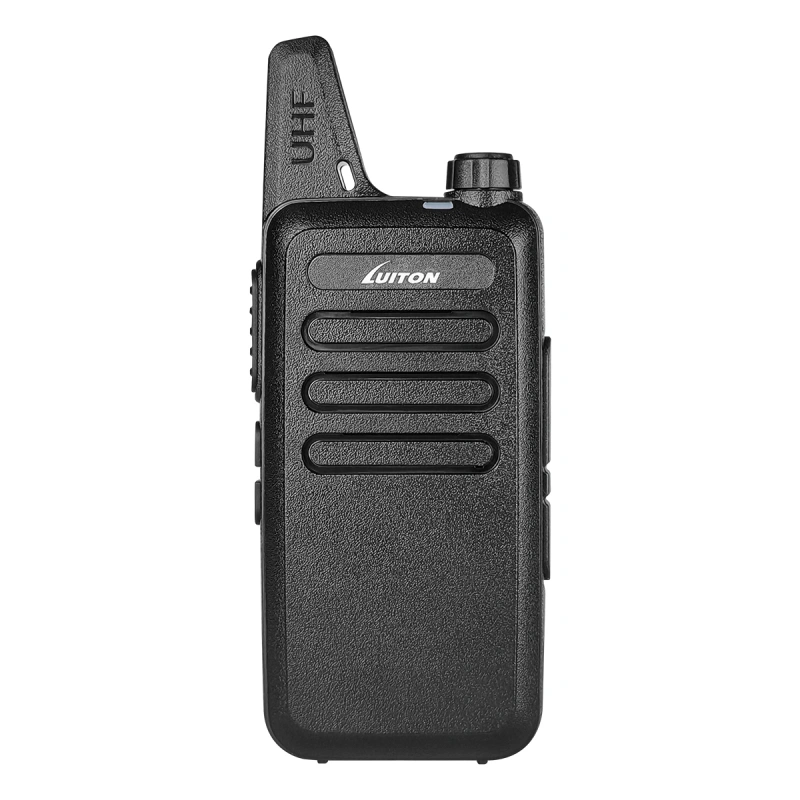

Handheld CB Radio with Integrated Antenna
- This handheld CB radio is designed for reliable communication, featuring an integrated antenna and a frequency range of 400-470MHz for versatility. It’s perfect for staying connected wherever you go.
Frequency and Power Specifications
- The radio operates within a frequency range of 400-470MHz, allowing you to communicate effectively. You can choose between output power options of 2W or 5W based on your needs.
Compact and Efficient Design
- With an integrated antenna and a lightweight design, this radio is easy to carry. Its 1500mAh battery provides long-lasting power for extended use without the hassle of frequent recharging.
Clear Audio Quality
- This radio delivers clear audio with a power output of at least 300mW. Its sensitivity rating of <0.16μV ensures that you can receive signals reliably in various conditions.
Channel Capacity and Operation
- You can store up to 16 channels for quick access to different frequencies. Operating on a DC3.7V voltage, this radio is efficient for daily communication needs.
Low Current Consumption
- The radio has a low operating current of ≤100mA, which helps conserve battery life. With a squelch current of only 20mA, it remains efficient even when not in use.

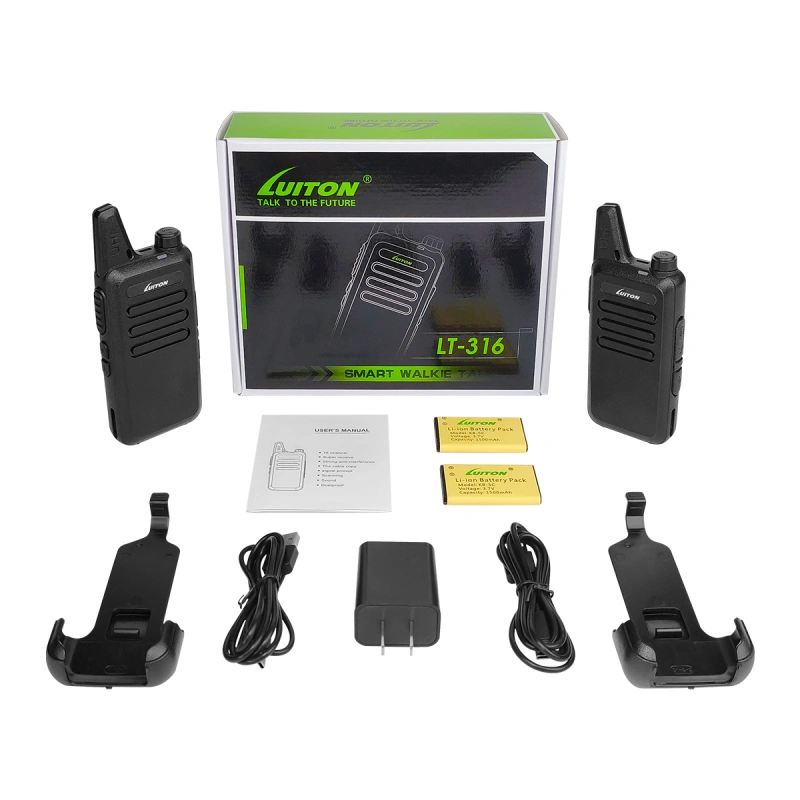

What’s in the box
2 * Handheld 2-way Radio UHF
2 * charging cables
2 * batteries
2 * belt clips
Charger
Additional information
| Weight | 0.465 kg |
|---|---|
| Dimensions | 20 × 16.5 × 6.5 cm |
| Config | LT-316 2pack |
| Frequency range | 400-470MHz |
| Operation Voltage | DC3.7V |
| Channel Capacity | 16 |
| Antenna | Integrated antenna |
| Antenna Impedance | 50Ω |
| Dimension | none |
| Battery Capacity | 1500mAh |
| Transmit | None |
| Output power | 2W/5W |
| The maximum deviation | ≤±5KHz |
| Residual radiation | <60dB |
| Receiver | None |
| Sensitivity | <0.16μV(12dB SINAD) |
| Squelch sensitivity | <0.2μV |
| Intermodulation | 50dB |
| Audio Power | ≥300mW |
| Current | ≤100mA |
| Squelch current | 20mA |
