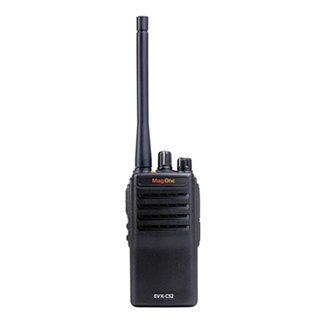

MOTOTRBO-Mag One EVX-C52 Digital portable radio

The EVX-C52 is eVerge’s™ C-Series mid-level DMR digital radio that enables you to communicate with the powerful digital capabilities of eVerge™, making your digital migration journey simpler and more efficient. The EVX-C52 delivers great value without sacrificing quality with a rugged construction and excellent performance – giving you more power and flexibility to achieve the best possible communication quality.

The EVX-C52 enables any business to move from analog to digital communication for better communication quality and product value.

Outstanding performance and reliability

The excellent RF circuit uses high-quality discrete components to ensure that the transceiver index meets the requirements of most parts of the world, and improves the anti-interference ability of the whole machine. The improved design not only ensures the performance, but also further reduces the failure rate of the host and improves the reliability under normal use conditions.

Recording function

In digital mode, you can save the call content, call time, and ID code for incoming and outgoing calls. Recording up to 200 hours* is supported, and recordings can be imported to your computer for saving or playback locally. This feature can help users to backup and listen back to important calls.

Pass-through mode

A new feature of DMR digital radios, pass-through dual time slots allow you to get two communication paths on one frequency, doubling call capacity without the need for repeaters.

32 channels

Allows up to 32 channels to be stored via programming software, each of which can be individually defined in digital or analog mode. The channels can be divided into 2 groups and quickly switched with preset programmable side keys.

Voice channel announcement

When the channel is switched, the radio can use voice to announce the current channel. This feature is quick and easy to help users focus on their work by eliminating the need to look at the radio when switching channels. This feature is available in both digital and analog modes.

Automatic recognition of digital-to-analog hybrid modes

The EVX-C52 can not only operate in digital mode, but is also compatible with previous analog systems, and is especially equipped with analog and digital adaptive functions. The EVX-C52 supports automatic recognition of analog and digital signals, allowing users to communicate with existing analog radio users as well as with the new analog/digital dual-mode DMR digital radio users.

Protective features

The IP54 rating provides basic protection against dust and water, so users can use it with confidence in most everyday environments.

Stand-alone mode

This is a function designed in digital mode to confirm the safety status of the user. The stand-alone mode is a built-in timer that requires the user to reset within a preset time interval, and if the user does not press the PTT button to reset the timer, the radio will automatically enter emergency mode and send out an alarm signal.

Lithium battery solutions

In digital communication mode, the use of TDMA technology reduces the battery consumption per call, making it more power-efficient when transmitting. The standard 1800mAh Li-ion battery solution provides up to 14 hours of use at 5-5-90 duty cycles (5% transmit, 5% receive, 90% standby).

Key features of the EVX-C52

● 3 programmable buttons

● Micro-USB programming interface

*The recording feature is in digital mode only, and the recording duration is based on the test conditions and methods defined by the MagOne product. The evaluation value of the walkie-talkie after the measurement is performed in the case of continuous recording. Recording times may vary depending on the call conditions.

• characteristic

• 1,000mW internal speaker
• Built-in VOX voice transmitter
• 6 sets of one-touch quick actions
• Battery level indicator
• Temporary deletion of unwanted channels
• Programming passwords

• Performance parameters

Frequency range
G6: 403–470 MHz

Channel spacing
25/12.5 kHz

IP Rating
IP54

Battery life (5-5-90 duty cycles in power-saving mode)
FNB-V146LI: 14 hours [digital]/11 hours [analog].

• Physical parameters

Display
None

Keyboard:
None

Radio dimensions: HxWxD126mm
x 61mm x 39mm [including FNB-V146LI Li-ion battery].

Weight (approx.)
274 g [includes FNB-V146LI lithium battery, antenna and belt clip]

• Walkie-talkie function

Voice Channel Broadcast
Yes

Separate staff alerts
Yes

Remote listening is
allowed

Tail Cancellation
Yes

Channel
32

• Use environment

  IP Rating
  IP54

  The information on this website is for your reference only before purchasing, and you must confirm the relevant product parameters and related information with the respective dealer/distributor before purchasing.
