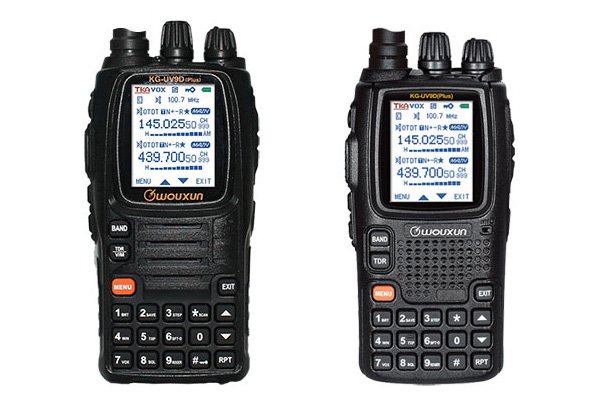

Wouxun-Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV9D(Plus)
,

Wouxun-Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV9D(Plus)

Categories: , Brand:

طلب عرض أسعار

  • Add products to the quote list
  • Fill out a request form
  • Get your quotation within 48 hours
Add to quote
  • KG-UV9D Plus is a multi-function amateur two way radio. Air bands receive and cross band repeat is the highlight feature. Thanks to the advanced audio processing and anti-interference technologies, the KG-UV9D Plus delivers clear communication even in noisy environments.

  • Seven Bands Receive
    Thanks to the advanced frequency modulation technologies, WOUXUN develop a first
    radio can support seven bands reception, which are 76-108MHz(FM) ,
    108-136MHz(air ground) ,136-180MHz(FM) ,230-250MHz(FM) ,350-400MHz(FM) ,
    400-512MHz(FM) ,700-985MHz(FM)

    Cross Band Repeater
    KG-UV9D Plus is a advanced two way radio which can repeat VHF to UHF or UHF
    to VHF. It can be used as a small movable repeater, very helpful for extend the
    talk range.KG-UV9D Plus repeater function are widely used in building,
    restaurant, taxi, factory ect.

    Anti-interference Technologies
    The advanced Anti-interference technologies are used in KG-UV9D Plus. The
    superheterodyne receiver makes KG-UV9D Plus performance great noise
    reduction. However, the High sensitivity also help KG-UV9D Plus receive
    the week signal.

    Mplitude-frequency PTT settings
    There are two PTT keys designed in KG-UV9D Plus. One control Main Frequency,
    another control sub frequency. This advanced design make user more convent
    communicate in different area.

    Memory Channels 999
    There are 999 channels in KG-UV9D Plus. The large channel memory makes user
    can store more channel list. It is a advanced channel storage in analogue
    two way radio.

    Duplex Work on A&B Areas
    KG-UV9D Plus support duplex work. When you transmit in A band, it can receive in
    B band at same time. Very helpful in duplex communication.
  • MORE  FUNCTIONS
    • Completely turn off display screen background light
    • Completely trun off flickering indicator light
    • Dual Receiving
    • TX on one area while RX on the other area simultaneously
    • RX on the same/different bands of A&B areas simultaneously
    • Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
    • Channel Groups Scanning
    • Memory Channels 999
    • QT/DQT Encoding/Decoding,QT/DQT Scan
    • Non-Standard CTCSS can be set arbitrarily
    • VOX and SOS function
    • Multi Definition for Sidekeys
    • Reverse Frequency
    • mplitude-frequency PTT settings
    • ncoming Message Display Caller ID display
    • DTMF Encoding&Decoding
    • All Calls,Group Calls And Selective Calls
    • PriorRemote Alarmity Scan Function
    • Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
    • Voice Guide:Chinese/English
    • Chinese/English Screen Display
    • English Channel Name Edit
    • Bright Flashlight illumination
    • Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
    • Stopwatch
    • Superheterodyne Receiver Type
    TECHNICAL  SPECIFICATION
    Intergration
       Frequency Range     TX: 136-174MHZ(FM) , 400-512MHZ(FM)
    RX: 76-108MHZ(FM) , 108-136MHZ(Air Ground)
    136-180MHZ(FM) , 230-250MHZ(FM)
    350-400MHZ(FM) ,  400-512MHZ(FM)
    700-985MHZ(FM)
       Frequency Step 2.5K/5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
       Channel Number 999
       Work Mode F2D / F3E
       Operating Temperature -20℃～+40℃
       Voltage 7.4VDC
       Antenna Impedance 50Ω
       Weight 490 G
       Size 123 x 58 x 31 MM
    Receiver
    Wide Narrow
       Adjacent Channel Selectivity ≤70dB ≤60dB
       Inter Modulation ≤65dB ≤60dB
       Spurious Response ≤70dB ≤70dB
       Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
       Signal to Noise Ratio ≥45dB ≥40dB
       Audio Distortion ≤5%
       Audio Power ≤500mW
       Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
    136-180MHz -119.0dbm SINAD 13dB
    230-250MHz -116.0dbm SINAD 13dB
    350-400MHz -119.0dbm SINAD 13dB
    400-512MHz -119.0dbm SINAD 13dB
    700-986MHz -96.0dbm SINAD 12dB
    Transmitter
    Wide Narrow
       Adjacent Channel Selectivity ≥70dB ≥60dB
       Type of Modulation 16K F3E 11K F3E
       Spurious ≥60dB ≥60dB
       Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
       Max Frequency Deviation ±5KHz ±2.5KHz
       Frequency Stability ±2.5PPM
       Audio Distortion ≤5%
       Output Power UHF H:5W , M:2W , L:1W
    VHF H:4W , M:2W , L:1W
  • dual bands transmission , seven bands reception , two way radio KG-UV9D(Plus)
