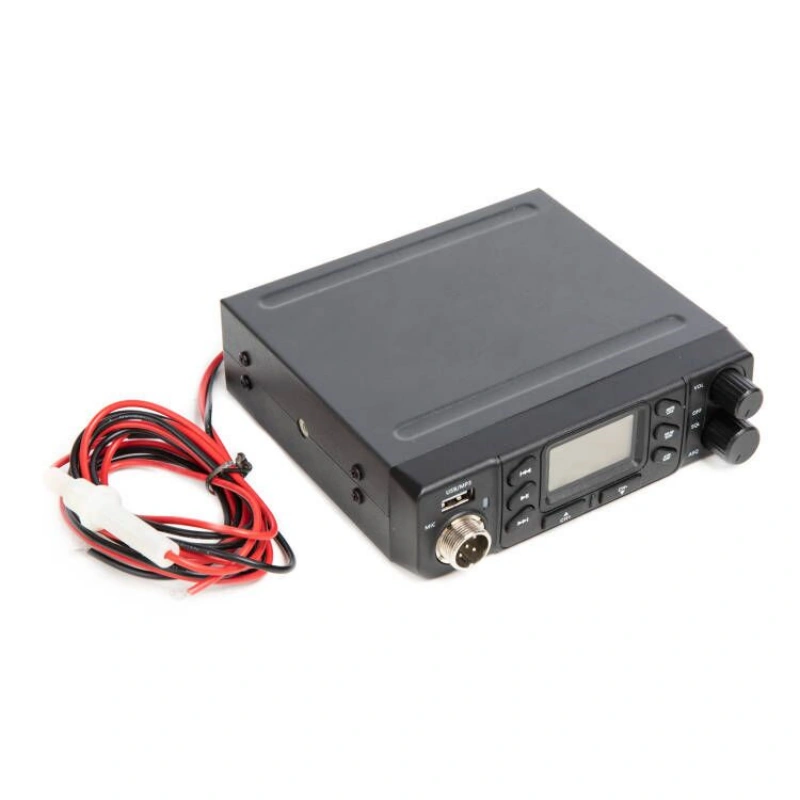

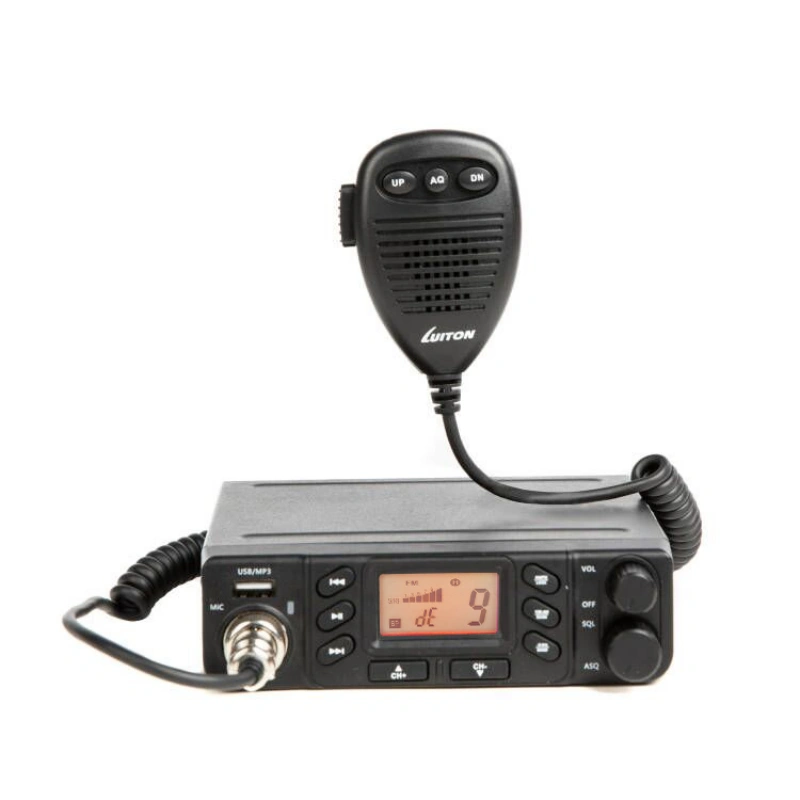

Luiton LT-328 CB Radio

$81.99

分类: , 品牌:

طلب عرض أسعار

  • Add products to the quote list
  • Fill out a request form
  • Get your quotation within 48 hours
- +

Reliable Communication Features

  • This radio works in AM and FM modes within a frequency range of 26.965-27.405MHz, allowing you to choose the best option for your communication needs. You can adjust the power output to 1W, 4W, or 8W.

High-Quality Reception

  • With a maximum sensitivity of 0.8μV for FM and 1.5μV for AM, this radio ensures that you receive clear signals. It also has 60dB adjacent channel selectivity to help reduce interference from other channels.

Clear Audio Performance

  • The radio provides an audio response range of 300Hz to 3kHz, ensuring clear sound quality during conversations. Its maximum audio power output of 3W helps make your voice heard clearly.

Efficient Power Management

  • This radio uses a maximum current of 3A when transmitting and only 0.3A when receiving, making it energy-efficient. Its compact size of 150mm x 140mm x 41mm and weight of 761g allow for easy installation in different vehicles.

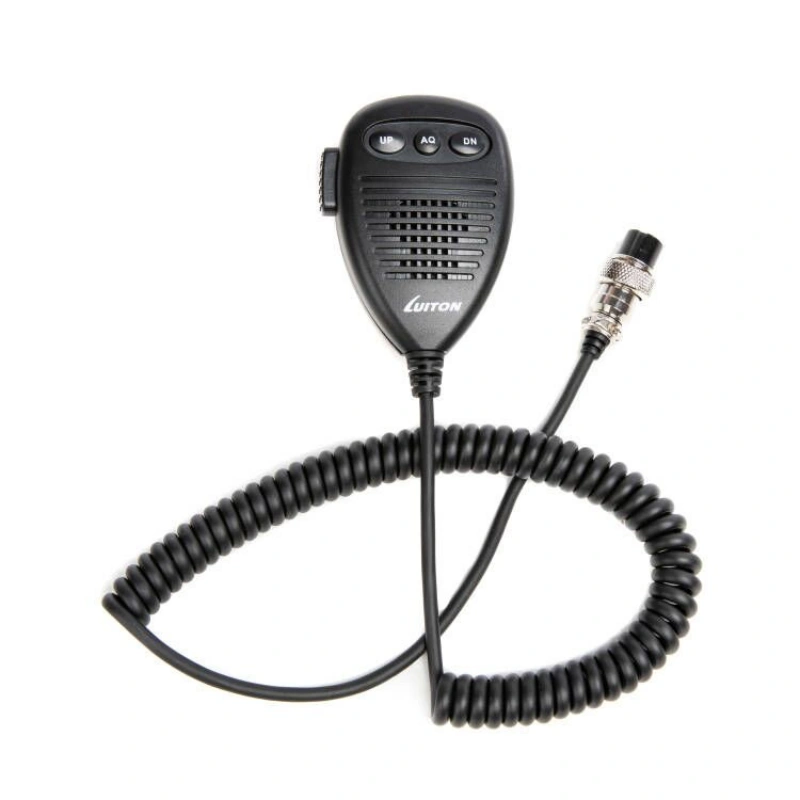

Enhanced Microphone Sensitivity

  • With a microphone sensitivity of 3mV, this radio delivers clear voice transmission without distortion, ensuring your communication is effective and reliable.

Additional information

Weight 1.13 kg
Dimensions 25 × 18 × 5.5 cm
Config LT-328 CB Radio
GENERAL None
Modulation modes AM/FM
Frequency range 26.965-27.405MHz
Antenna impedance 50 Ohms
Power supply 12-24V Input
Dimensions 150*140*41mm
Weight 761g
Transmission None
Frequency error +/-300HZ
Carrier power 1W/4W/8W
Transmission interference Inferior to 4nW(-54dBm)
Audio response 300HZ to 3KHZ in AM/FM
Emitted power in the adj. channel inferior to 20uW
Microphone sensitivity 3mV
Transmission Maximum current max 3A
Modulated single distortion inferior ro 5%
Reception NONE
Max sensitivity at 20dB sinad 0.8μV-113 dBm FM
1.5μV-103 dBm AM
Frequency response 300HZ to 3KHZ in AM/FM
Adjacent channel selectivity 60dB
Maximum audio power 3W
Squelch sensitivity Minimum 0.2μV -120dBm
Minimum 1mV -47dBm
Maximum current 0.3A nominal/1.2A maximum
