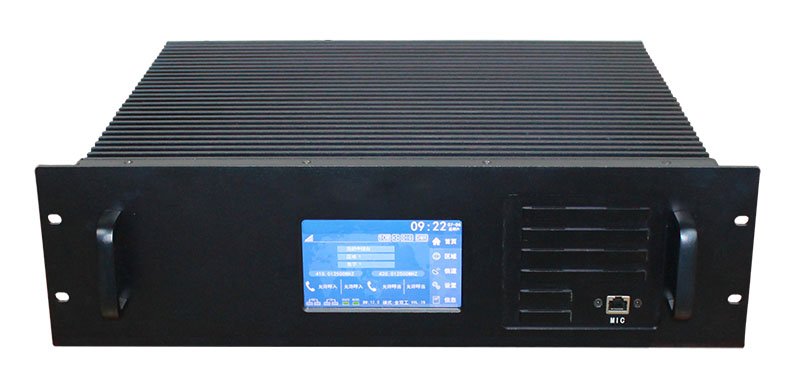

Wouxun-Repeater Station KG-DR3000
,

Wouxun-Repeater Station KG-DR3000

分类： , 品牌：

طلب عرض أسعار

  • Add products to the quote list
  • Fill out a request form
  • Get your quotation within 48 hours
TECHNICAL  SPECIFICATION
General
   Frequency Range136-174MHZ , 300-350MHz , 400-470MHz
   Channel Spacing12.5 / 25 KHz
   Frequency Stability±0.5 PPM
   Operating Voltage110 / 220 VAC(±15%) , 13.8 VDC(±15%)
   Operating Temperature -30℃～+60℃
Receiver
   Reference Sensitivity (Analog)0.35µV / -116dBm (12dB SINAD)
0.22µV / -120dBm (Type)
   Reference Sensitivity (Digital)0.35µV / -116dBm
0.22µV / -120dBm
   Adjacent Channel Selectivity60dB 12.5KHz
75dB 20 / 25KHz
   Inter Modulation75dB
   Spurious Response Rejection70dB
   Rated Audio Output0.5W
   FM Noise45dB 25KHz , 40dB 12.5KHz
   Rated Audio Distortion≤3%
Transmitter
   Antenna Impedance50Ω
   RF Power Output25W
   Frequency Modulation16K@F3E / 11K@F3E (Analog) , 4FSK (Digital)
   Modulation Limiting±2.5Khz 12.5KHz , ±5KHz 25KHz
   Radiated Spurious Emission-36dBm < 1GHz , -30dBm > 1GHz
   FM Noise45dB 25KHz , 40dB 12.5KHz
   Modulation Distortion≤3%
MAIN  FUNCTIONS
  • IP Connection With DMR Tier 3
  • Voice Recording
  • GPS and AVL
  • Automatic Roaming
